Concrete Piers and Steel Pipe Rack Seismic Analysis, The Netherlands
Customer Project

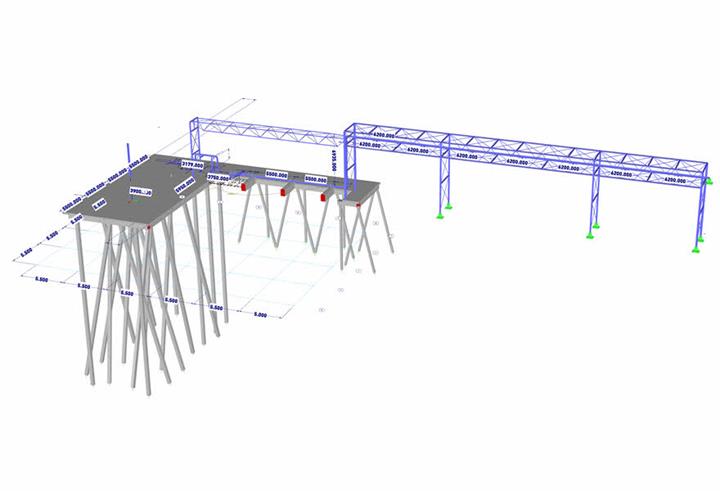

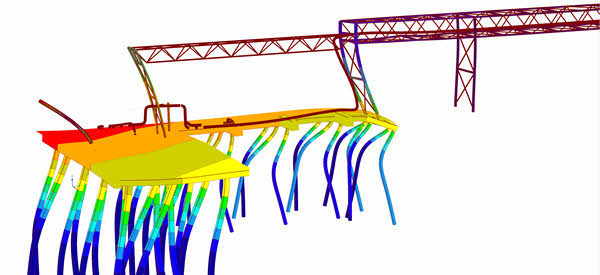

Witteveen+Bos performed a seismic analysis on an existing concrete foundation with piers located in the Netherlands. The connected steel pipe rack and piping system were also included in the analysis.Utilizing a multimodal response spectrum analysis in RFEM, Witteveen+Bos specified a unique response spectra to analyze the structural response induced by this seismic activity.
| Seismic Analysis |
Witteveen+Bos N.V., The Netherlands www.witteveenbos.com |
