[EN] FAQ 003286 | What is the easiest way to generate a rotated surface or a surface in the polar direction ...

Question:

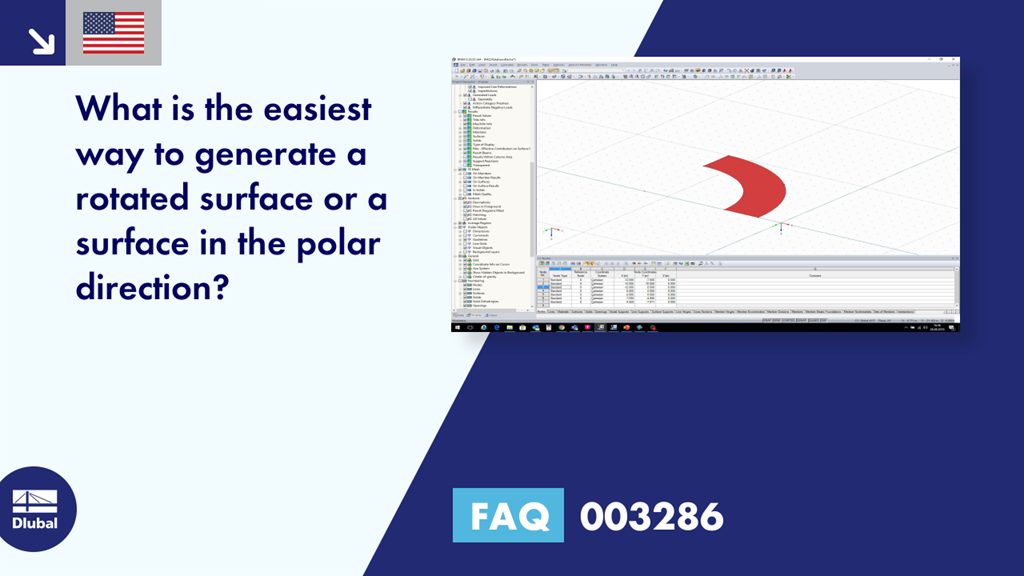

What is the easiest way to generate a rotated surface or a surface in the polar direction?

Answer:
To do this, Detail Settings has additional options of the functions "Move", "Rotate", or "Mirror"; see Image 01.

For example, if there is an annular surface to be designed, and the center point as well as the inside and outside radius are known, proceed as follows:

Insert a node on the inside radius and outside radius.

Connect both nodes with a line.

Select these three objects.

Open the "Rotate" feature.

Activate "Lines between nodes" as well as "Surfaces between lines".

Pay attention to the type of the connection lines that are created when rotating.

Watch the short video that is available for download.
