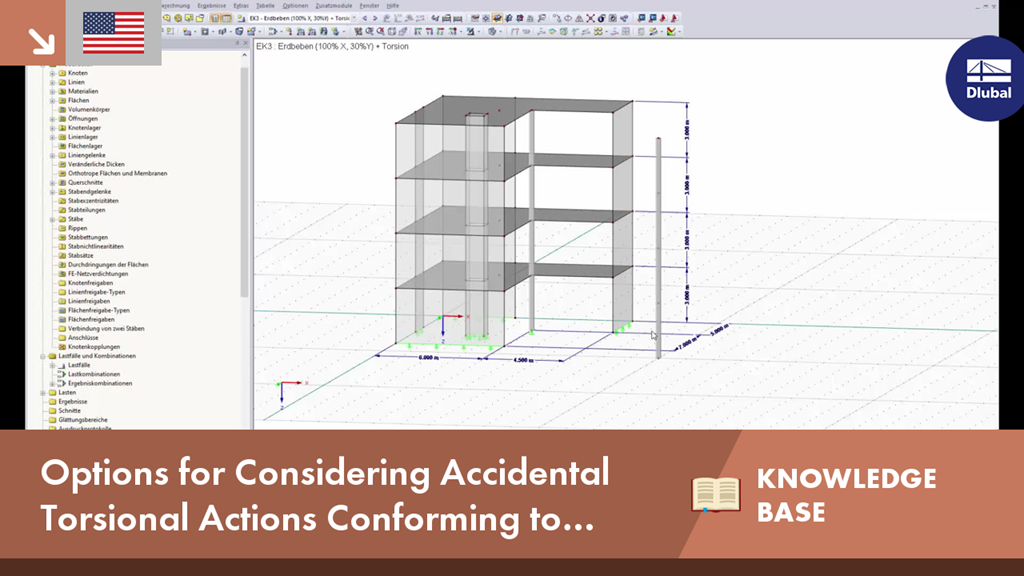

KB 001615 | Options for considering accidental torsional effects according to standards
Video
First Steps with RFEM
Description
In order to consider inaccuracies regarding the position of masses in a response spectrum analysis, the standards for seismic design specify rules that have to be applied in both the simplified and the multimodal response spectrum analysis. These rules describe the following general procedure: The story mass must be shifted by a certain eccentricity, which results in a torsional moment.
