Question

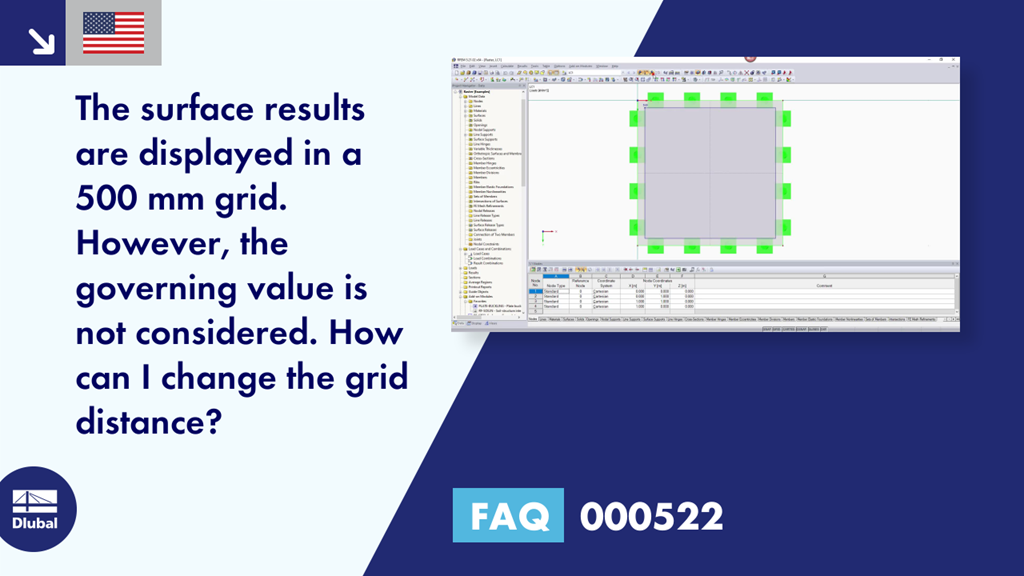

The surface results are output in a 500 mm grid. However, the governing value is not considered. How can I change the grid distance?

Answer

The tabular results are displayed at the grid points of each surface. The printout report also uses this grid.

Double-click the surface to open the "Edit Surface" dialog box. Then, select the "Grid" tab.

Now enter the distances b and h that are matched to the model geometry. You can also use the "User-defined" check box to specify individual settings (grid origin, rotation).
