FAQ 000522 EN

Printout report RFEM

The surface results are output in a 500 mm grid. However, the governing value is not considered. How can I change the grid distance?

Answer

The surface results are output in a 500 mm grid. However, the governing value is not considered. How can I change the grid distance?

The tabular results are displayed at the grid points of each surface. The printout report also uses this grid.

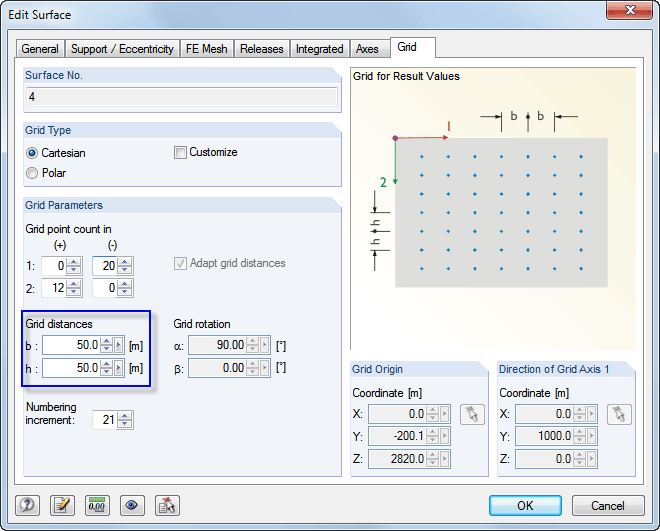

Double-click the surface to open the "Edit Surface" dialog box, and go to the "Grid" tab.

Specify the distances b and h, that are adjusted to the model geometry. By using the "Customize" check box, you can also specify individual settings (grid origin, rotation).
