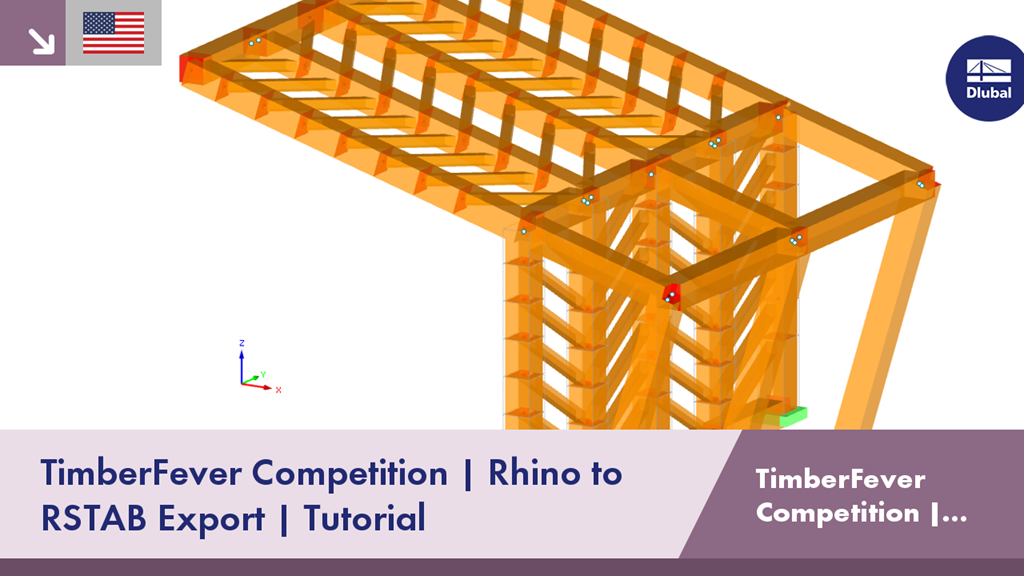

TimberFever Competition | Rhino to RSTAB Export | Tutorial
First Steps with RFEM
This video is a tutorial on how to export a model from Rhino and import it into RSTAB for analysis and design.
00:00:00 Introduction/Rhino Export
00:03:26 RSTAB Import
00:04:26 General Data
00:05:17 RSTAB Overview
00:11:57 Model clean up
01:00:13 Member hinges
01:07:22 Load combinations
01:25:55 Timber CSA
