RWIND Simulation 1

Please accept Marketing Cookies to watch this video.

Description

Because EN 1991-1-4 does not address internal wind pressure for laterally open structures, it is recommended to apply the regulations according to the previous German DIN 1055-4.

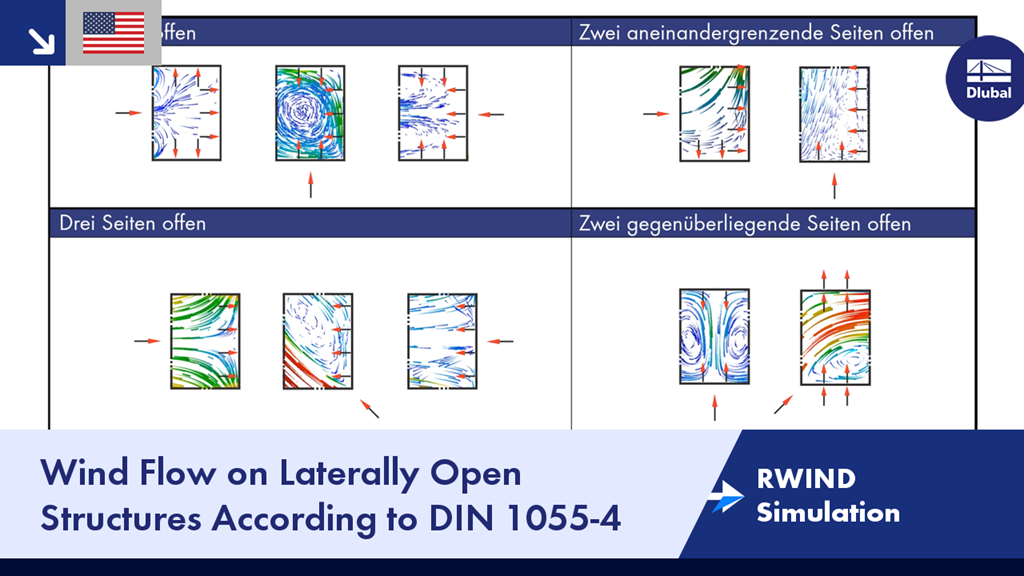

This video demonstrates wind flow with simultaneous pressure and suction forces utilizing the "RWIND Simulation" program on four different building types.

As given in DIN 1055-4, the following cases are analyzed:
- One side open
- Two adjacent sides open
- Two opposite sides open
- Open on three sides

To determine pressure and suction on the surfaces, the pressure coefficients (cp) are displayed in color. The red areas represent wind pressure (cp > 0) and the blue areas represent wind suction (cp < 0).

The RWIND models are based on the simplified representations according to DIN 1055-4, Section 12.1.9, Figure 11 "Pressure coefficients on inner surfaces of laterally open structures". All models can be downloaded here on our website.

https://www.dlubal.com/en-US/downloads-and-information/examples-and-tutorials/models-to-download?page=1&entity=standard&entity=customer-project&entity=event&entity=knowledge-base&entity=product-feature&query=%22laterally+open+structure%22&porder=desc&psize=21

Keywords

RWIND Simulation Laterally open structure Pressure coefficient cp factor State of the art DIN 1055-4 12.1.9 Wind simulation Wind Tunnel Wind Stream Wind flow analysis Flow analysis Numerical wind tunnel OpenFOAM Shrink wrap Wind Load Generation Wind simulation software Digital wind tunnel CFD wind simulation program Determination of wind currents Wind effects on the building
