In the 3D display in RFEM, I want to show the surfaces according to their true thickness.

Where can I set this?

Answer

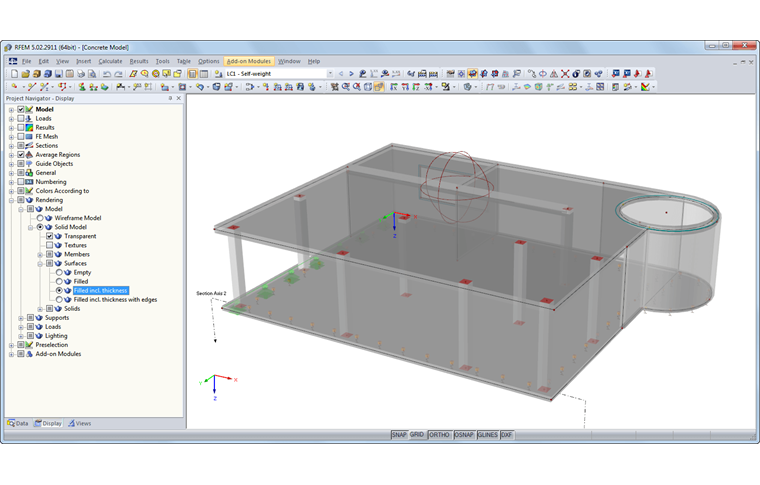

Use the Display navigator to set the corresponding rendering parameters. To display surfaces according to their true thickness, select the settings:

Rendering -> Model -> Solid Model -> Surfaces -> Filled incl. thickness

Keywords

Surface Thickness Filled including thickness Full model Contour
