FAQ 000331 EN

1 December 2017

Robert Vogl Calculation RFEM

When generating a FE mesh, a message appears saying that an internal node is too distant.

Answer

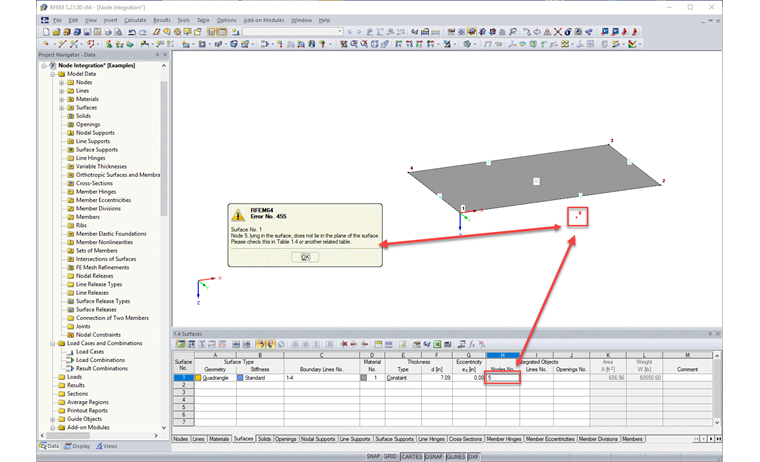

This message is shown if an integrated node (a node in a surface) is not located in the surface plane (Figure 01).

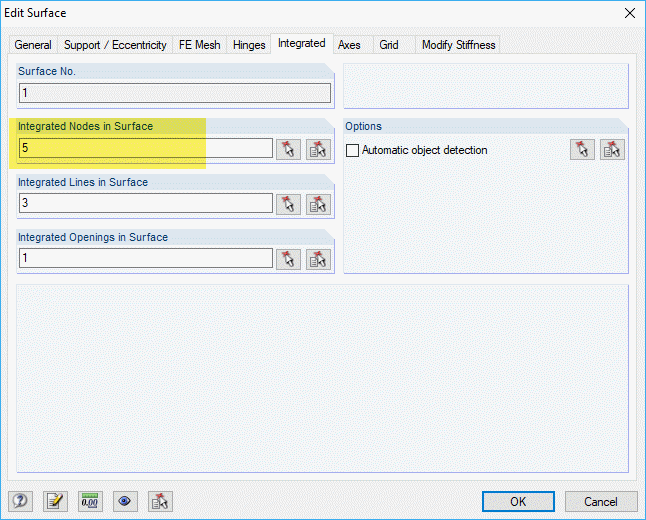

To solve this problem, move the node in the surface plane or delete the corresponding nodal number from the list of the objects integrated in the surface (Figure 02).

Keywords

internal node integrated node surface FE mesh
