I want to rotate a graphic by 90 degrees in the printout report. What is the easiest way to do this?

Answer

If you want to rotate graphics by 90 ° in the printout report, you can do this via the properties of the graphics.

For this, it is best to right-click the graphic in the report. In the shortcut menu that appears, select "Properties."

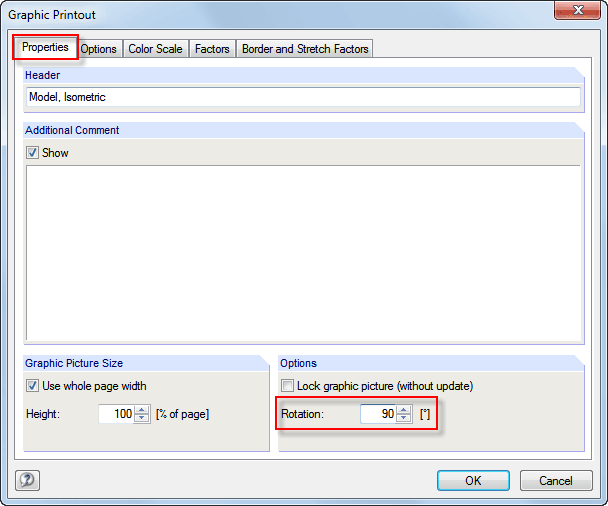

In the "Properties" tab, you can then enter the desired angle for the rotation of the graphic (see the figure).

Keywords

Printout report Graphics Rotate
