Answer:

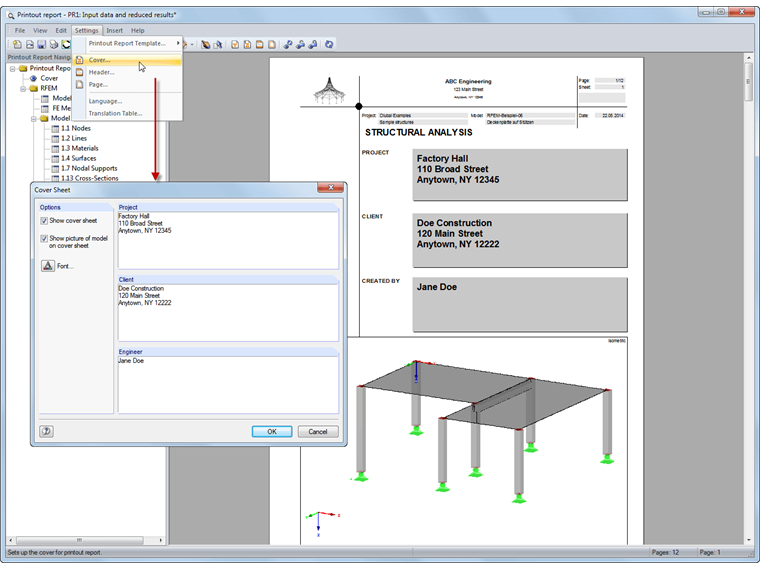

You can edit and change the cover sheet of a printout report using the shortcut menu of the "Cover Sheet" option in the Navigator.
To do this, right-click "Cover Sheet" and select "Properties" in the shortcut menu.
Question
Is there any way to modify the cover sheet once it has been created?
