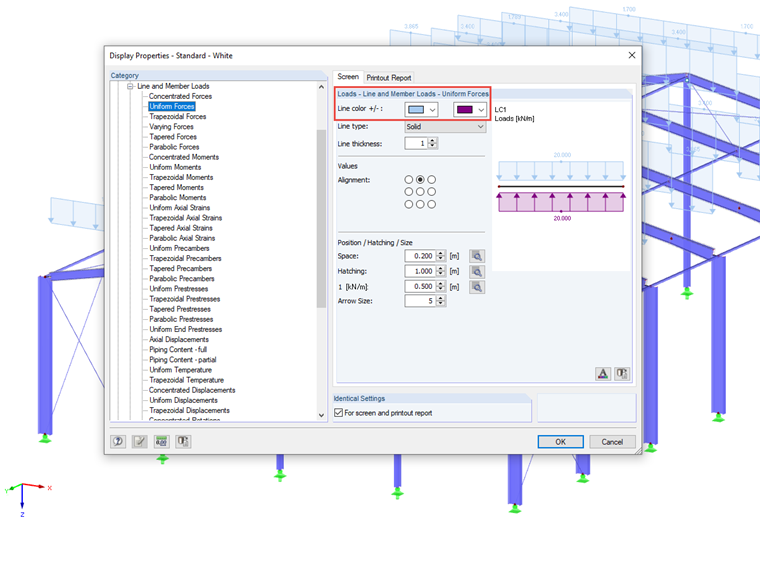

It is possible to change the display in "Display Properties".
You can access this window using the pull-down menu Options → Display Properties → Edit or by right-clicking in the work area.
Under the Loads → Line and Member Loads tab, you can now make the desired changes; for example, change the distance or adjust the size of the load specification.
