I can no longer select a member or node in the table to select it in the graphic. Is there any wrong setting?

Answer

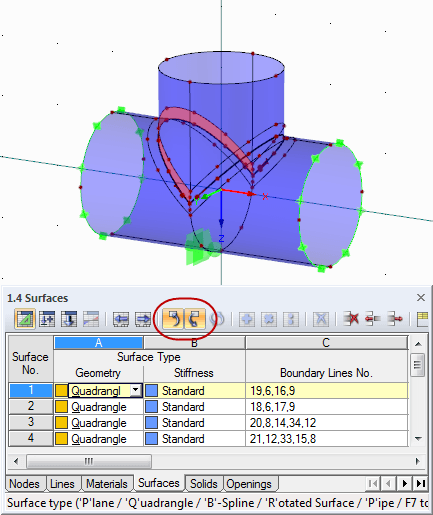

The [Synchronization of Selection] and [Show Selected Objects] buttons have been probably deactivated in the table window. Switch them on again (see Figure 1). Then, an object whose table row is selected is also highlighted in color in the graphic. Conversely, if an object is selected in the graphic, the relevant line is also shown in the table and highlighted in color.

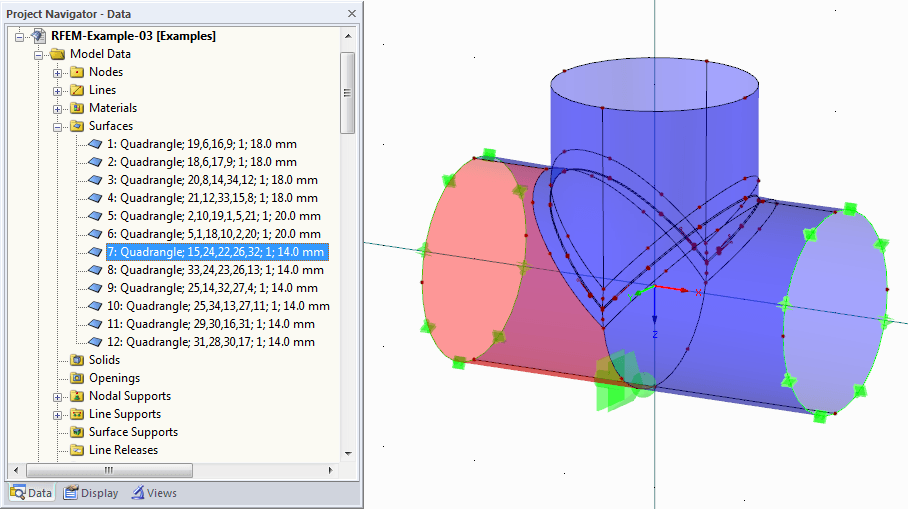

Objects that are clicked in the Data navigator are also selected in the graphic (see Figure 2).
