I have added an opening to a curved quadrangle surface. However, only the boundary is displayed and the opening itself is missing. What went wrong?

Answer

It is caused by the fact that the opening was not yet integrated because the automatic object detection is deactivated for curved quadrangle surfaces.

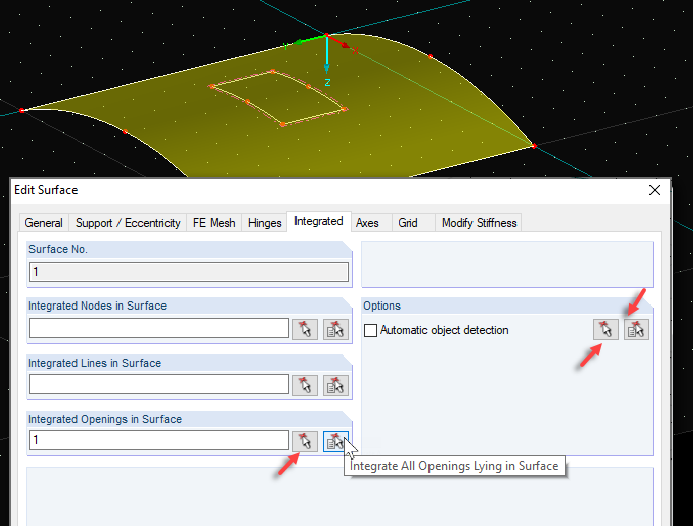

To integrate the opening (or other objects), go to the 'Integrated' tab of the 'Edit Surface' dialog box. Use the selection buttons to selectively or completely select integrable nodes, lines, and openings (see the figure).

Keywords

Quadrangle Curved Surface Opening Integrated
