How can I use SHAPE-MASSIVE cross-sections for tapered members?

Answer

To use SHAPE-MASSIVE cross-sections for tapered members, two conditions must be met.

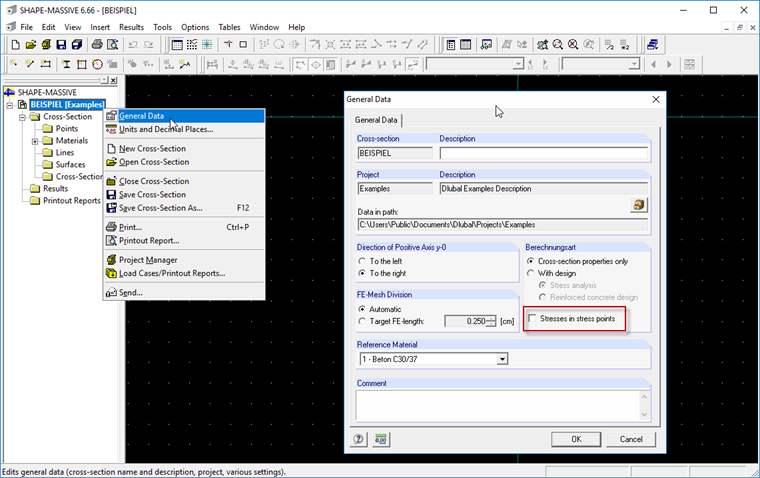

1st In the General Data of the SHAPE-MASSIVE structure, the option "Stresses in stress points" must be deactivated. See Figure 01.

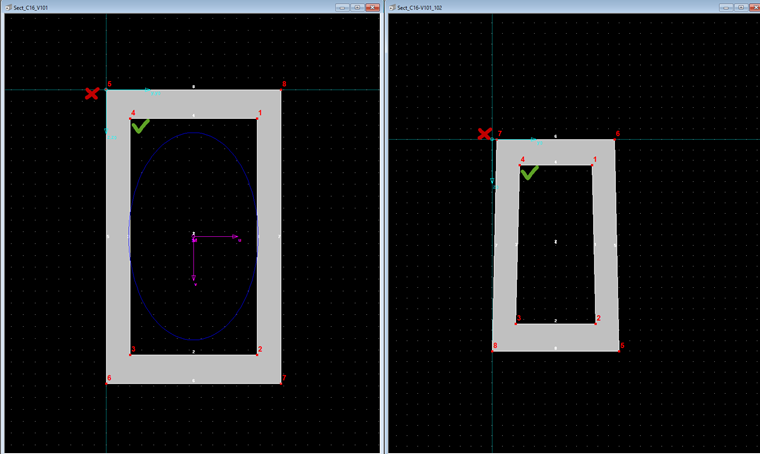

2nd The nodes (corner points) of the cross-sections used for the taper must be arranged the same way in both cross-sections. See Figure 02.

Keywords

taper, SHAPE-MASSIVE, stress points
