FAQ 002488 EN

21 February 2019

Gerhard Rehm Import / Export & BIM RFEM RSTAB

How can I import or convert SketchUp models to RFEM or RSTAB?

Answer

The program 3skeng Steelwork in SketchUp allows you to export IFC files based on the 'Structural Analysis View'. This view contains the structural system including member end releases as well as the cross-section and material properties.

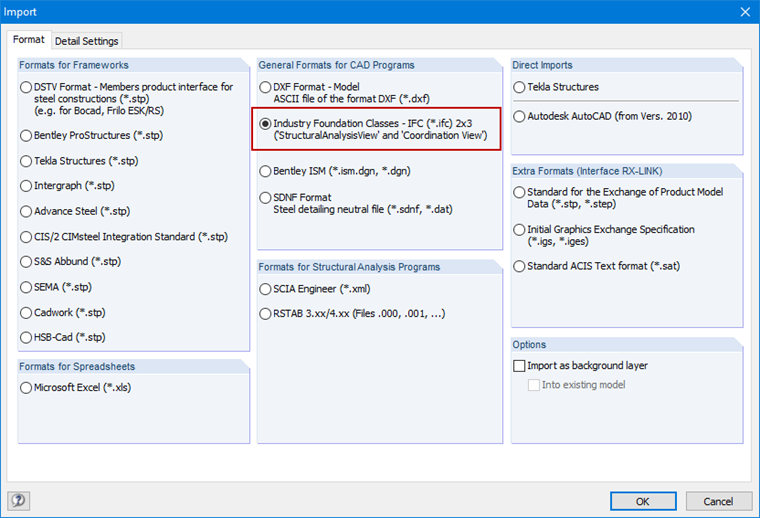

You can import the IFC file by clicking 'File → Import'. A detailed description can be found on the webseite of SHK Engineering and Consulting GmbH & Co KG

Keywords

SketchUp 3skeng 3skeng Steelwork import IFC
