FAQ 002648 EN

18 March 2019

General RFEM RSTAB Structural Analysis & Design

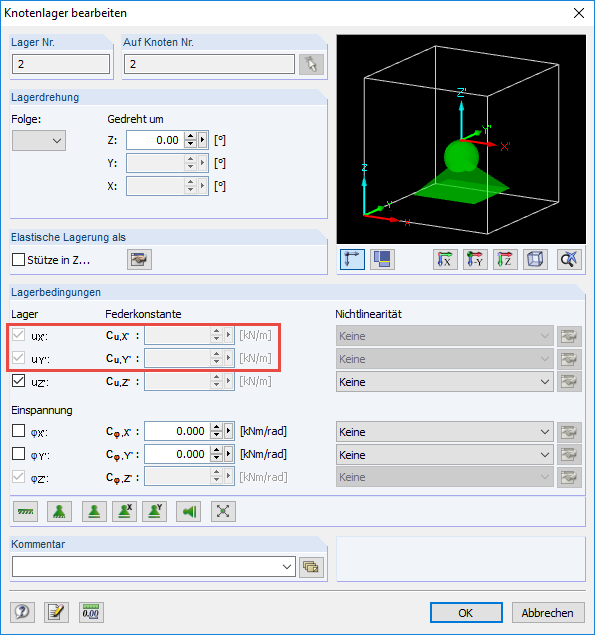

I want to define an X-slidable node storage, but the selection is greyed out. Why is that?

Answer

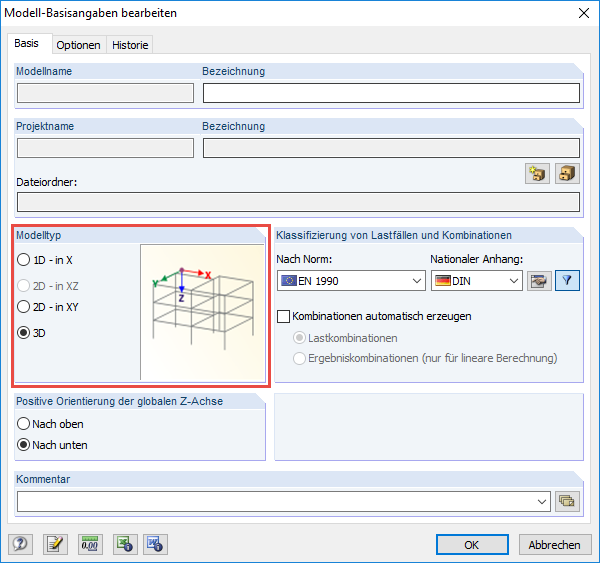

If not all directions of the nodal bearing can be freely selected, you should check whether you have selected the model type 3D in the basic data. In a 2D surface, certain directions of the bearing are blocked.

Keywords

Nodal Supports Direction 3D
