Which cross-sections and which cross-sections as reinforcements of a runway girder are allowed for the design in the CRANEWOUNK add-on module?

Answer

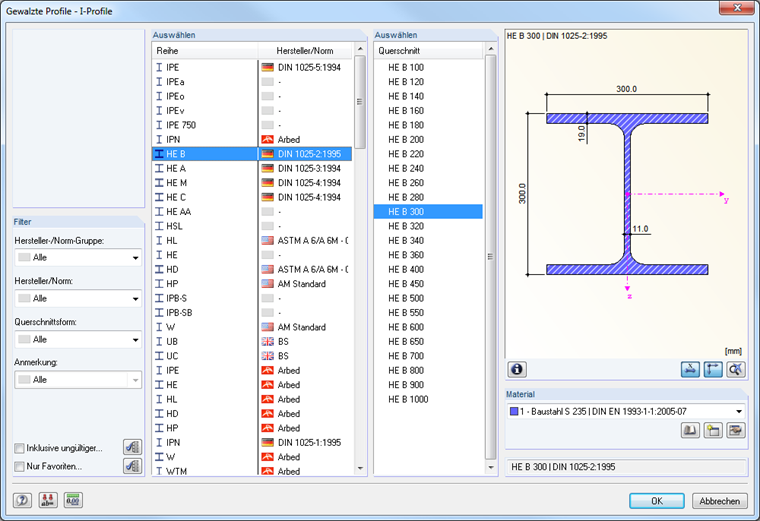

For rolled cross-sections, you can access the extensive [library] of the I-shaped rolled cross-sections,
which you can access with the corresponding button (see Figure 1). The following cross-sections can be selected, among others: I-section series (I, IPE, IPEa, IPEo, IPEv, HE-B, HE-A, HE-M, HE-AA, etc.)

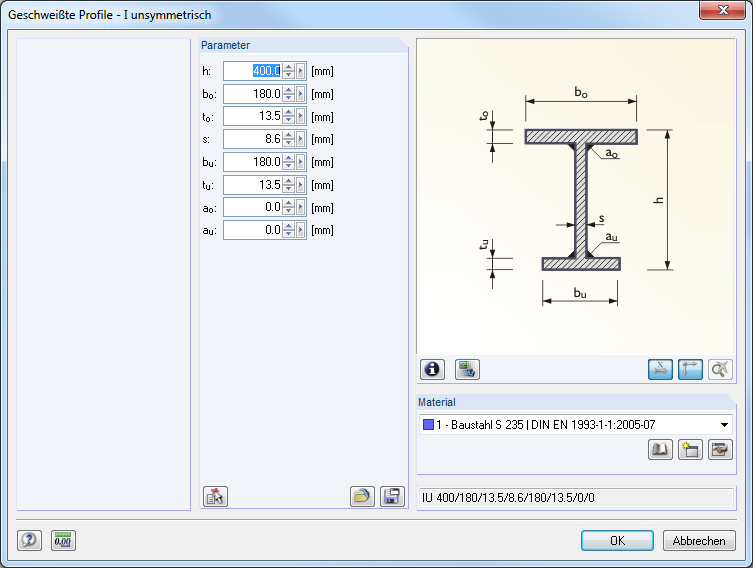

If there is a Welded cross-section, you can define I-shaped, uniaxially symmetric cross-sections (see Figure 2).

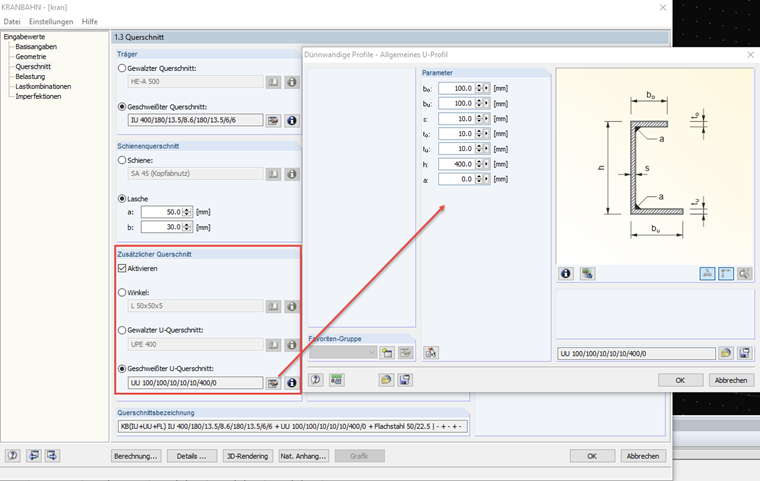

Angle and U cross-sections are possible as additional cross-sections. They can be defined as the cross-sections
Select the beam in the [Library] or use the button to define the beam (see Figure 3).

We already have an interesting webinar about " Design of crane way girders according to Eurocode 3 " on our homepage.
