Answer:

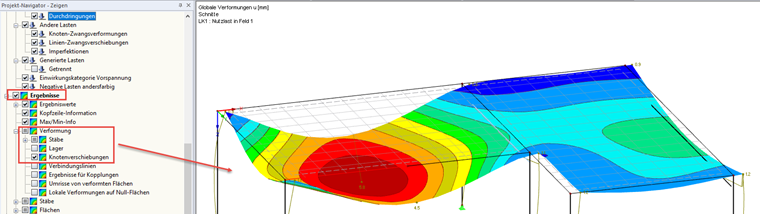

In order to display the desired nodal values, it is necessary to activate the "Nodal Displacements" option in the Display navigator (see the image).
Question
After the calculation, only the maximum result values for the deformations are displayed. Can I also display all nodal deformations?
