Why can I not create any dimensions? I can't snap any nodes or members. Points and nodes are not snapped.

Answer

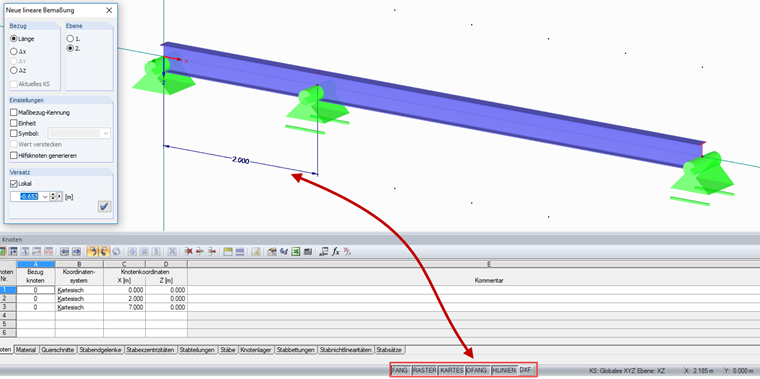

At the bottom of the user interface of RSTAB and RFEM is the status bar. The center area can be used to influence the user interface. If the options FANG and OFANG are activated, grid points, nodes and objects can be caught (see Figure 1). Then a dimensioning of the system is possible.

Keywords

Snap Object Snap Snapping Point Snap Catch Nodes Dimensions Status Bar
