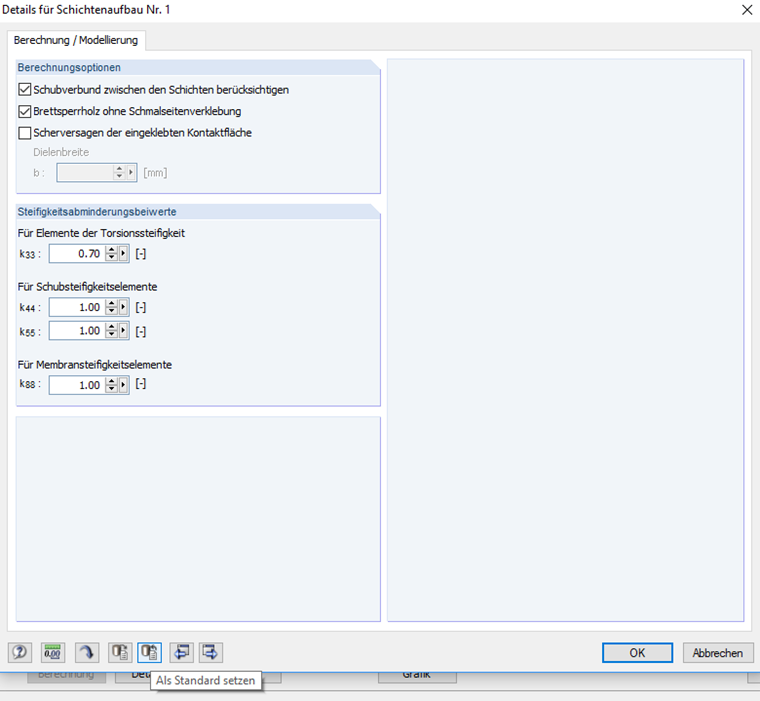

The activated option for glue at narrow sides generally relates to the design of cross-laminated timber surfaces. However, the RF‑LAMINATE add-on module is also suitable for other materials, such as carbon fibers, plastics, and laminated glass. Therefore, this setting cannot be set by default. However, it is possible to define this as a default setting (Image 01).
