Does a function exist in RSTAB / RFEM that can determine the maximum internal forces from the different load combinations, a kind of envelope?

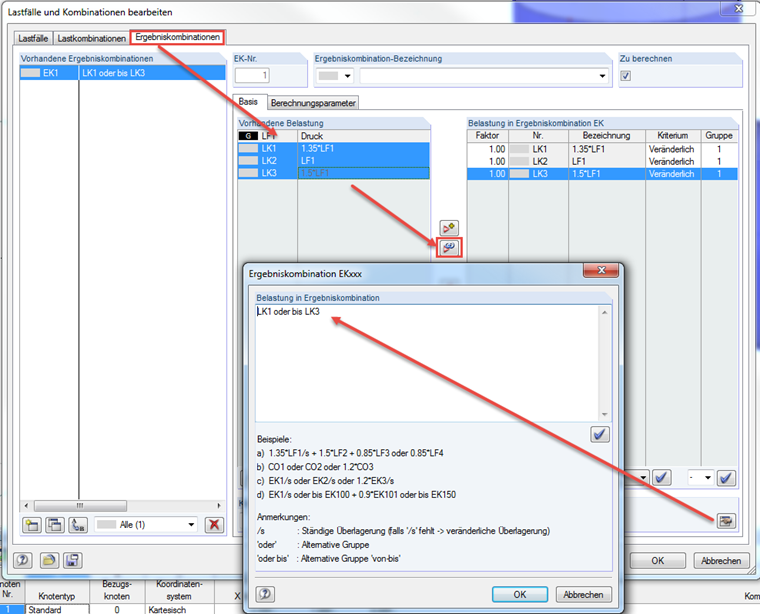

This is exactly what you can do very quickly with a result combination. If you add the individual load cases, load combinations or result combinations with the criterion "Or" (see Figure 1), the maximum or minimum results will become the same
Envelope calculated. Further information on the use of result combinations can be found in our manual.


Envelope Envelope Envelope Maximum value Minimum value
