How can I reconstruct the detailed results or the intermediate results of the proofs in the limit state of serviceability in RF-BETON surfaces? For the required reinforcement, the info button for the SLS is inactive.

Answer

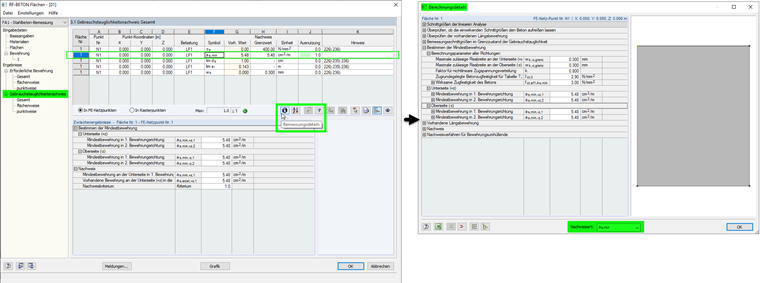

The design details can be opened in section Serviceability under individual calculations. To do this, the line with the corresponding calculation must be selected and then the info button pressed (see Figure 1). The design details can also be selected in the lower part of the dialog.
