I have installed RFEM and REVIT but the buttons for the direct import / export in REVIT are missing, what can I do?

Answer

If the plugin is missing in REVIT, you can install it as follows:

1. Go to the following folder shown by system:

32-bit system: "C: \ Program Files \ Common Files \ Dlubal \ DLInstaller"

64-bit system: "C: \ Program Files (x86) \ Common Files \ Dlubal \ DLInstaller"

2. Open the DLInstaller.exe program

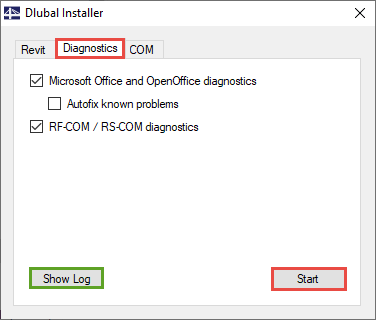

3. Go to the "Diagnostics" tab and click "Start"

4. If this does not solve the problem, please send us the report that is generated by "Show Log".
