I would like to enlarge my internal forces by 10% and carry out the design in the add-on modules with them. Is it possible?

Answer

Yes, this is possible.

In the calculation parameters of each load case or each load combination, you can find the option "Multiply load by factor".

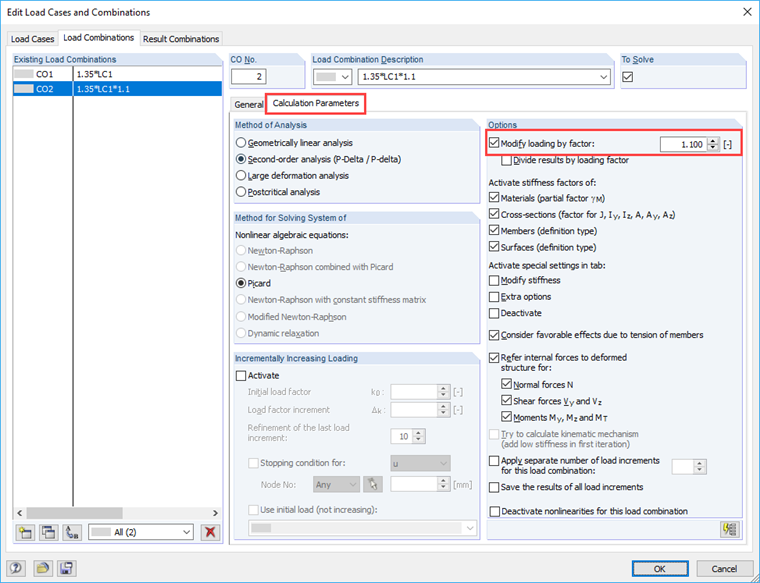

You can select it and enter a factor with which the loading for the internal forces of this load case / load combination is multiplied. See Figure 01.

Keywords

Multiply load by factor Multiply loading Load factor Load increment factor
