What options are there for exporting an existing model to Advanced Steel?

Answer

There are two options for the export to Advanced Steel (Figure 1):

  • Export via the product interface

Export the data to an stp format via the interface of the German Steel Construction Association and import this file into the target program.

You can find this interface in the "Formats for Frame Structures" field in the "File" → "Export" menu.

  • Export via the Advanced Steel interface

Export the data to an smlx format via the "Advanced Steel" interface and import this file into the target program.

You can also find this interface in the "General Formats for CAD Programs" dialog box in the "Export" dialog box.

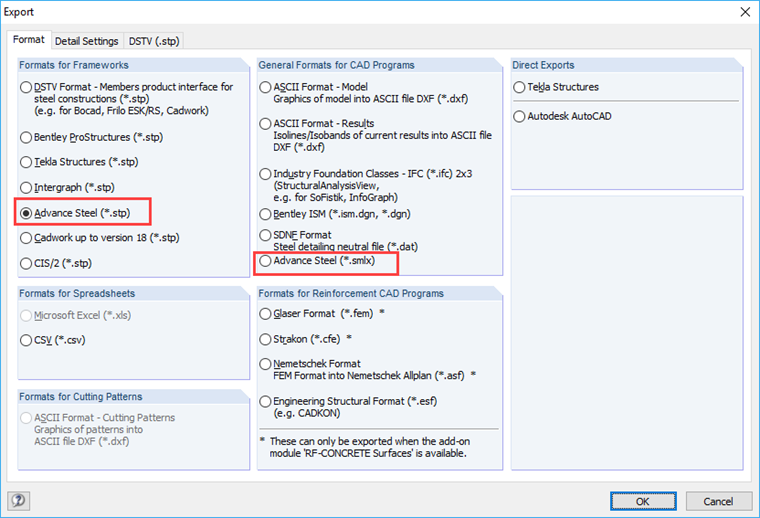

Figure 01 - Export

Keywords

Advanced Steel Export Interface Stp Smlx
