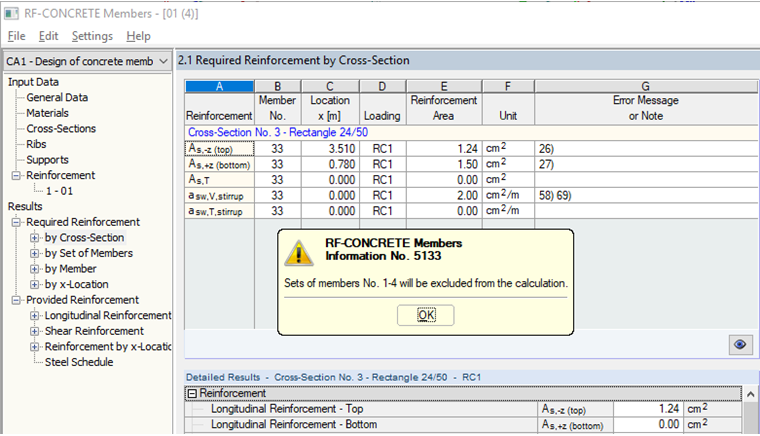

In RF-CONCRETE Members, I receive following error message: "Set of members No. will be excluded from the calculation." What does it mean?

Answer

The sets of members to be designed in the add-on module must be based on the same or consistently running cross-section.

A special feature is a set of members consisting of ribs. This results in an identical cross-section only if the integration width of the rib is selected to be the same. Thus, there must be a uniform rib type for the entire set of members.

Tapered sets of members are only designed if the entire set of members has a linear cross-sectional diagram.

Keywords

Note 5133 Set of members Sets of members Rib Taper
