Answer:

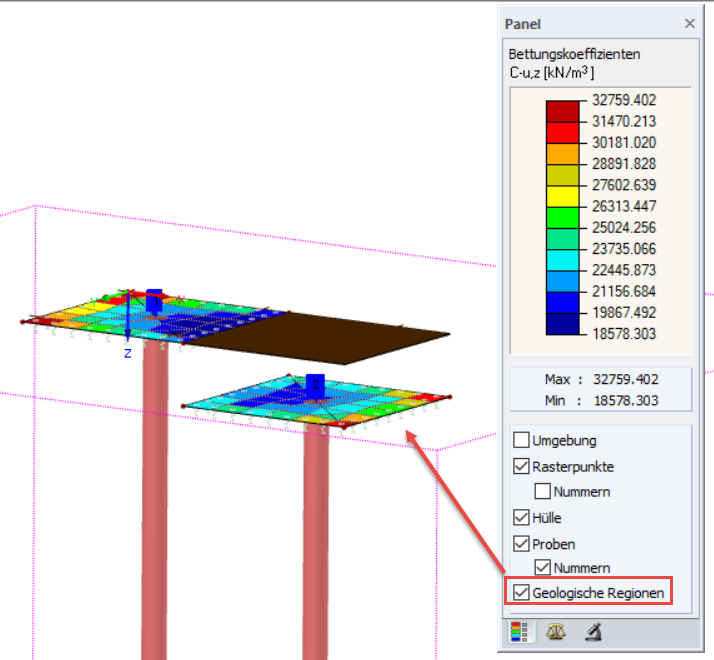

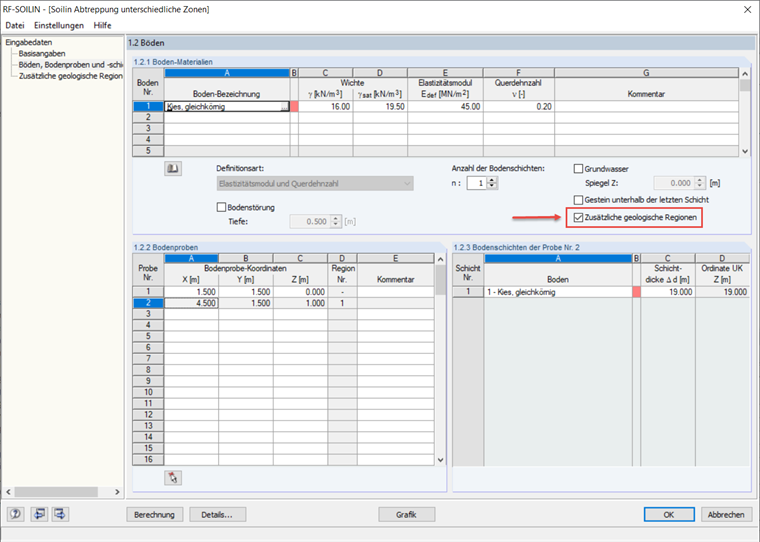

Yes, you can. To do this, there is the option to enter additional geological regions (see Image 01). In Window 1.2, you can select the "Additional geological regions" check box. Then, you can define the shape, coordinates, and number of layers of the additional geological region in Window 1.3. This way, it is possible to model different foundation heights of several floor slabs correctly in the model.
Question
Can I also use RF‑SOILIN to calculate foundation bodies at different foundation heights in a model?
