What results can be exported from the module RF-/DYNAM Pro with its additional modules via the RF-/COM interface?

Answer

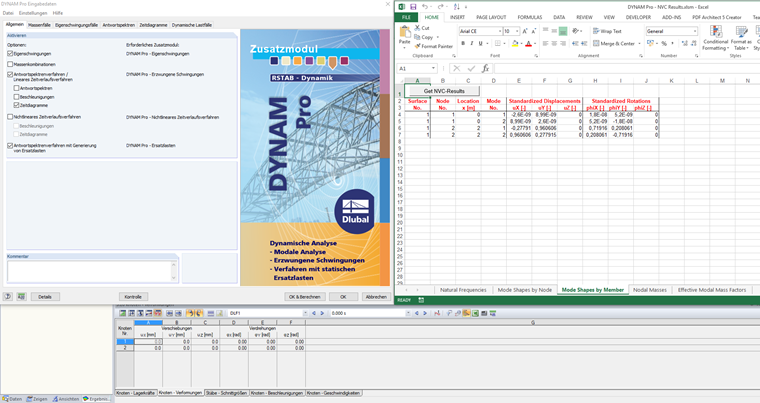

The RF-/DYNAM Pro add-on module enables an exchange of the following results by means of the RF-/COM interface:


  • Eigenvalues
  • Nodal deformations (Table 5.20)
  • Member deformations
  • Surface deformations (RFEM)
  • Nodal masses
  • Effective modal mass factor

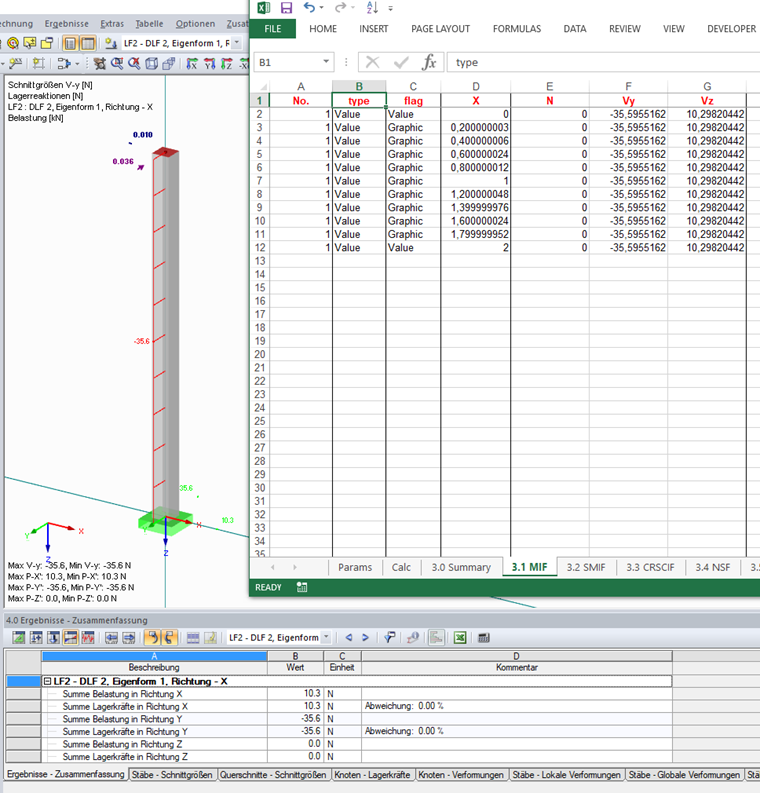

Furthermore, it is possible to output the internal forces, deformations, and support reactions of the equivalent load cases via the RSTAB or RFEM interface. There are help files available for each output option. These files are described in this article.

Keywords

Help file Data exchange Export Results
