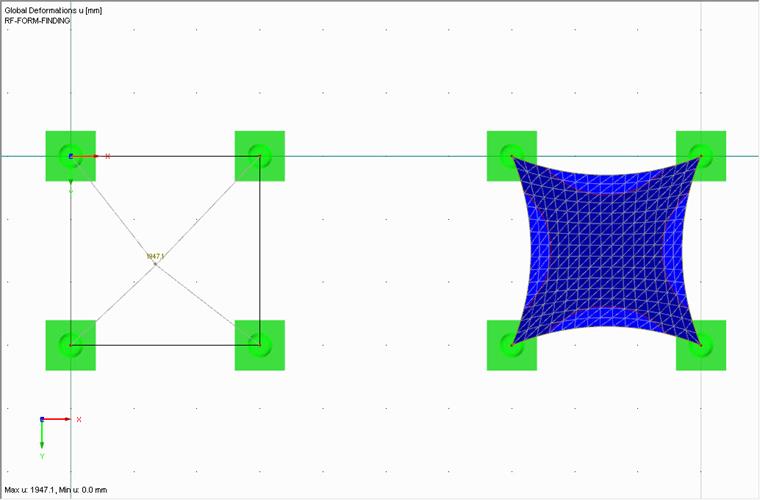

Why is the membrane constricted so much during the form-finding? I obtain very large deformation values.

Answer

Such an effect could be caused by free edges, which can be deformed almost infinitely during the form-finding process. In this case, it is difficult to achieve the state of equilibrium.

As a basis for the form-finding, there should be no free edges on the membrane surface. There must be cables arranged on the free edges of the membrane whose stiffness can be based, for example, on the folded or strengthened membrane edge strips.

Keywords

Membrane Singular Jacobi matrix Convergence
