FAQ 004124 EN

8 October 2019

Sonja von Bloh Printout Report RFEM RSTAB

How can I add more tables or remove tables in the printout report?

Answer

The content of the printout report can be changed in the "Printout Report Selection" dialog box.

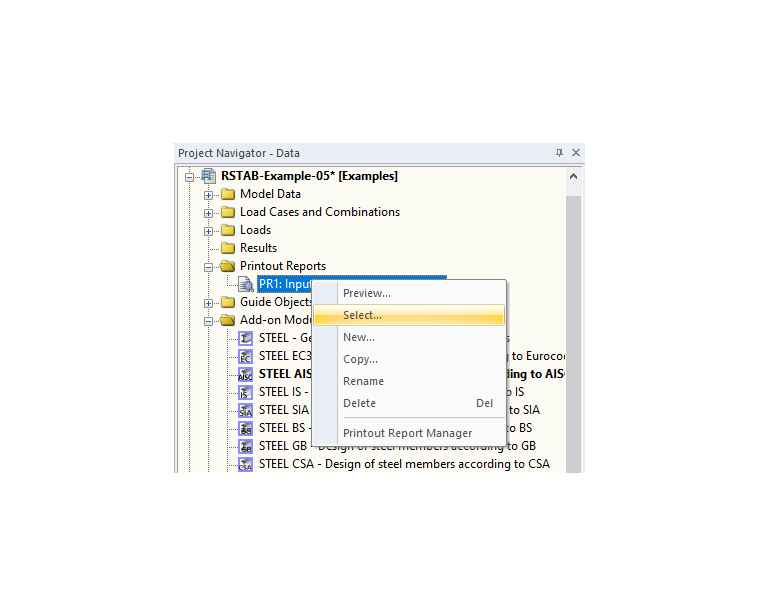

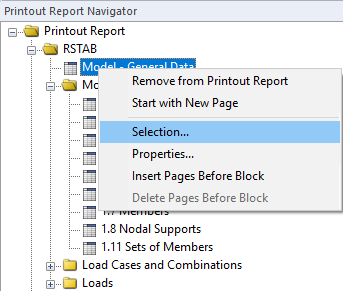

In the open printout report, use the menu Edit → Select, the corresponding toolbar button, or the printout report shortcut menu (Figure 1). You can also use the shortcut menu of the Project Navigator - Data to open the dialog box without opening the printout report (Figure 2)

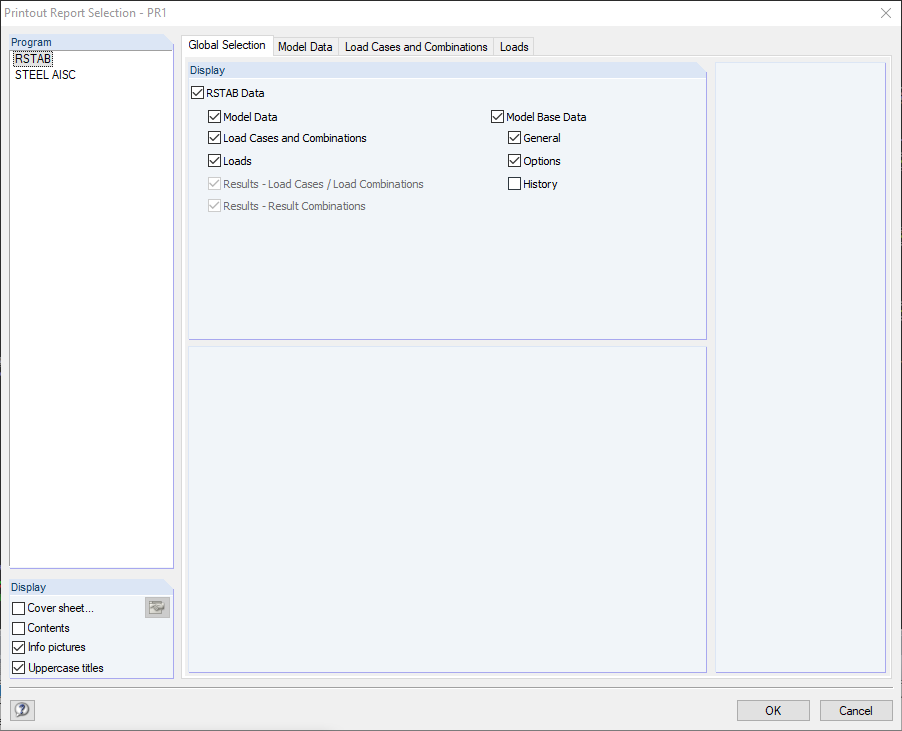

In the global selection, you can select the chapters that you want to appear in the printout report (Figure 3). If you clear a check box, the corresponding detail register disappears.

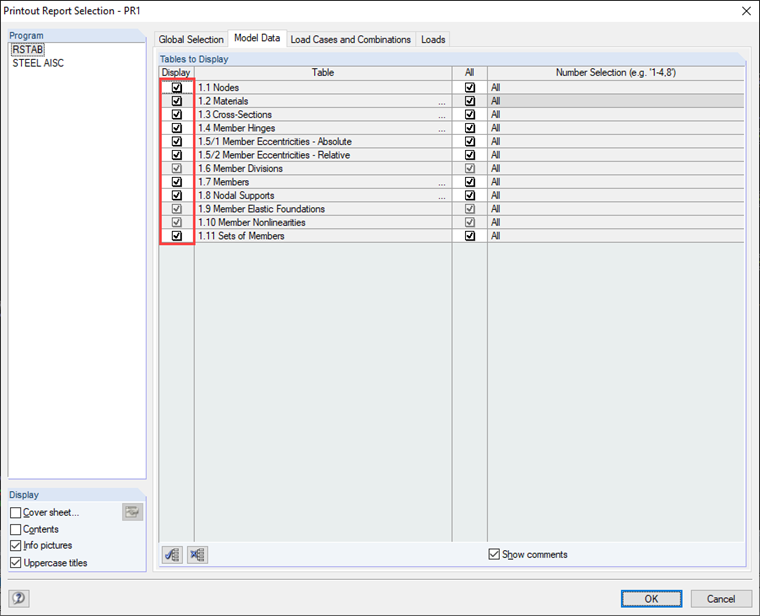

In the Model Data, Load Cases, and Combinations, Loads and Results tabs, you can select the corresponding tables in the "Tables to Display" dialog section (Figure 4).

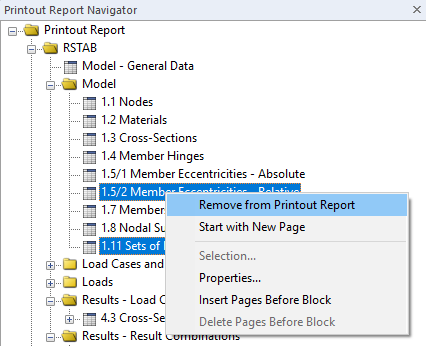

Furthermore, you can delete chapters in the open printout report by using the shortcut menu. To do this, select the corresponding chapters and then select the "Remove from Report" command in the shortcut menu (Figure 5). To insert the chapter (s), use the dialog box "Printout Report Selection."
