How can I retroactively adjust my surface model with regard to the finite element size without the total number of elements becoming too high?

Answer

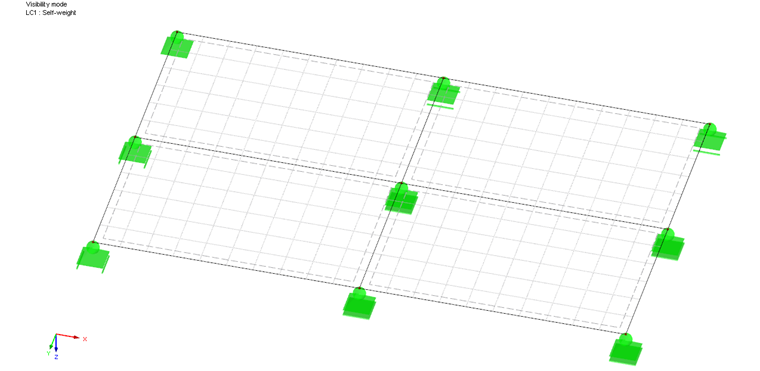

Basically, the surfaces of the model have the FE size that was preset in the general FE mesh settings.

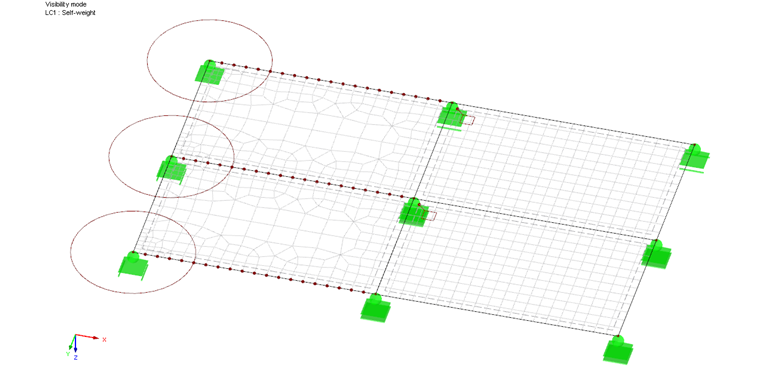

You can add "FE Mesh Refinements" locally to a surface model.

This has the effect that the general finite size can be retained in the FE mesh settings, but the mesh is locally refined so that more accurate results can be expected from the calculation.


In this case, the FE mesh refinement can be performed on nodes, lines, and surfaces. The setting can be found in the "Edit" dialog boxes of the node, line, or surface.

By using the local FE mesh refinement, it is possible to keep or even increase the general FE mesh size. Thus, it is possible to keep the total number of elements in the model relatively low.
