Which functions are available for the data exchange between Rhino and RFEM?

Answer

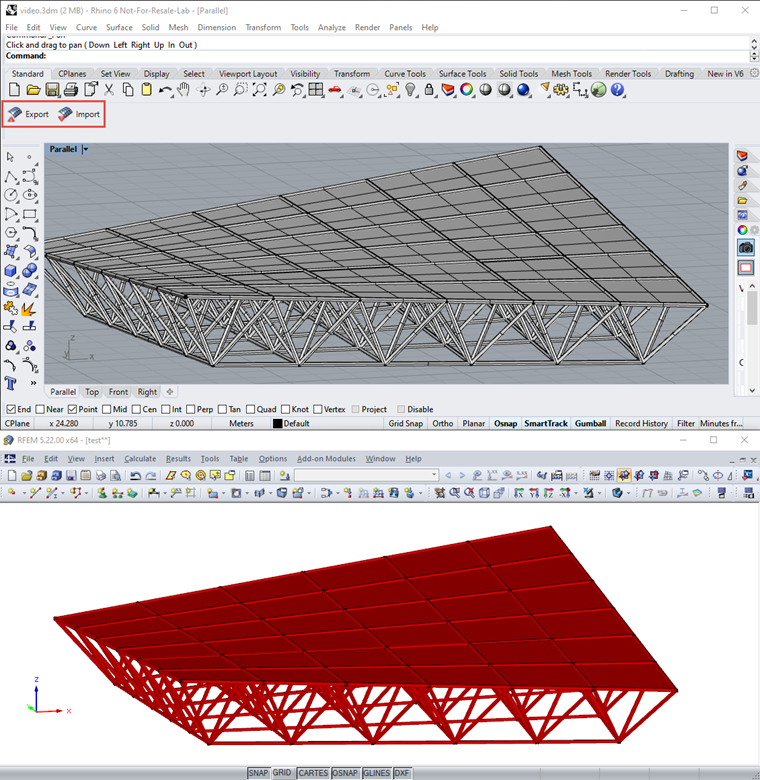

In principle, the handling of the interface is very simple. After carrying out a successful installation, the Dlubal toolbar is available in Rhino. This includes two icons (Export and Import).



Using 'Import', it is possible to import data from RFEM to Rhino. It is always imported the whole RFEM model. No update shall be performed in this case. The data is added to the existing structure.
Click 'Export' to export data from Rhino to RFEM. Normally, the entire structure is exported. If you only want to export parts of the structure, select them before starting the export. It is necessary to start the RFEM and create a file to carry out the export. Please note that the export procedure overwrites all existing data of the opened file. Therefore, it is recommended to open an empty file.
