How can I display the color scale of a graphic in the printout report?

Answer

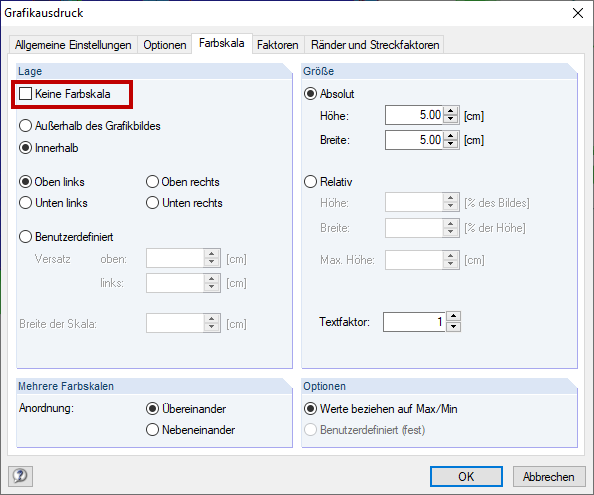

When printing a graphic in the printout report, you can select the position of the color scale in the "Color Scale" tab. Furthermore, you can adjust the size of the color scale in the same dialog box. If the "No color scale" check box is deactivated (Figure 1), it is displayed in the graphic in the printout report.

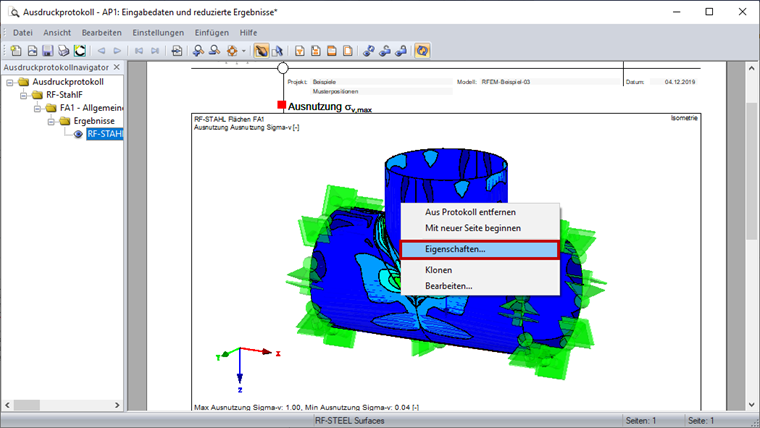

If a graphic has already been inserted into the printout report without a color scale, you can display the color scale retroactively. To do this, right-click the picture. Then, select the properties in the shortcut menu (Figure 2) to open the "Color Scale" tab. Here, it is also possible to edit the position and the size of the color scale.
