Is it possible to consider the static rest position in a time history analysis?

Answer

Yes, you can consider the static rest position in a time history analysis. For this you can use the 'Stationary State' function (not available in the linear modal analysis).


With this function, it is possible to read a condition from a load case or a load combination that exists over the entire time history. These include the deformations, the stiffness modifications, and the states of nonlinearities.

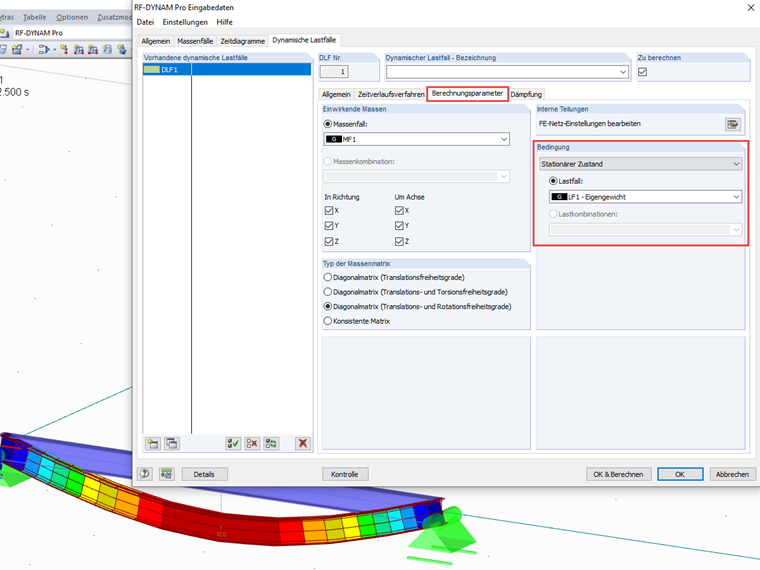

This function is activated in the RF-/DYNAM Pro add-on module, in the 'Calculation Parameters' tab of the Dynamic Load Cases.

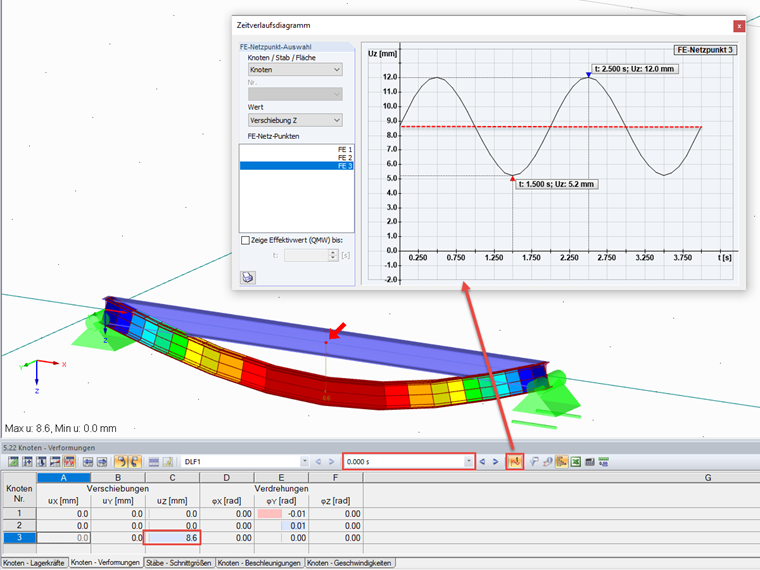

The time history diagram is well suited for results evaluation. In the attached example, load case 1 with the dead load was defined as a stationary state. In the time diagram, it can be seen that the deformations oscillate about the value that is reached by the static rest position.

Keywords

Time history Rest position Stationary state Dynamic analysis
