In RF-CONCRETE Surfaces, I get non-designable situations with a note saying that the shear resistance cannot be checked (cross-section entirely cracked). What is the reason for this message?

Answer

A non-designable situation like this is displayed if the shear resistance without shear reinforcement VRd,c is arithmetically smaller than zero.

A VRd,c value of less than zero is caused by large tensile axial forces. In this context, the cross-section is completely under tension or completely cracked, and no shear force resistance can be created.

For coated cross-sections with planned shear reinforcement, the following situation results:

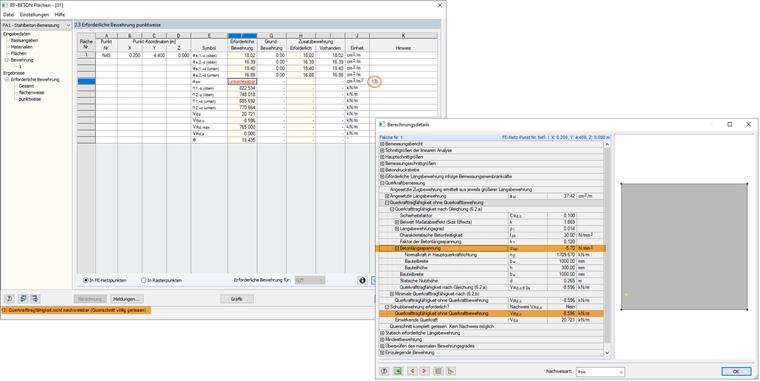

In RF-CONCRETE Surfaces, if VRd,c < 0, no further shear check is performed, and message 13) is displayed. This approach is conservative.

In this context, there was a request (194) for the interpretation of the standard, which allows the truss model to be used even with a completely cracked cross-section.

If a shear reinforcement is designed as planned, the message about the non-designable situation in the program can be ignored. In this case, it should be ensured that VEd is smaller than VRd,max and VRd,s.

Keywords

Shear check Message 13 Coated cross-section
