Is it possible to extrude a surface into a solid along a curved line or circle?

Answer

The "Extrude" function allows you to quickly generate spatial solids from planar surfaces.

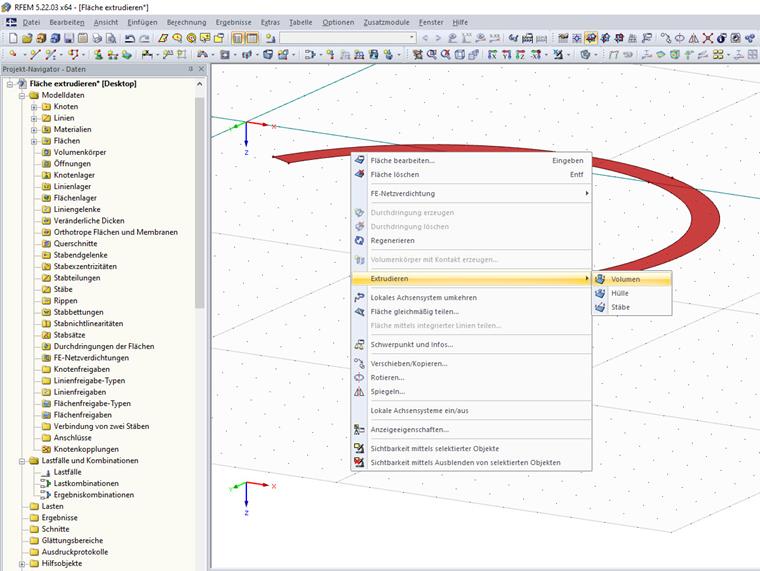

To open the function, use the shortcut menu of the surface. To do this, right-click the surface. In the menu, select the "Extrude → Solid" function.

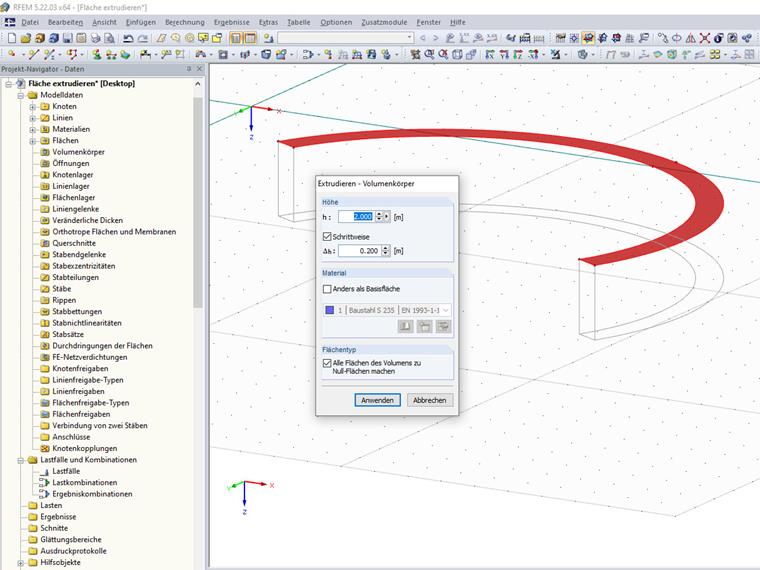

A dialog box appears, where you can define various parameters. For example, the height h can be entered directly or determined graphically with the mouse.

Keywords

Surface Extrude Curved line Circle Solids
