Answer:
If you want to consider the load cases again, please perform a new RWIND Simulation calculation. If you want to perform the calculation of the existing combinations, please remove the RWIND Simulation load cases from the Wind action before deleting the FE mesh; then the combinations are created again and it is possible to perform the calculation.
Question

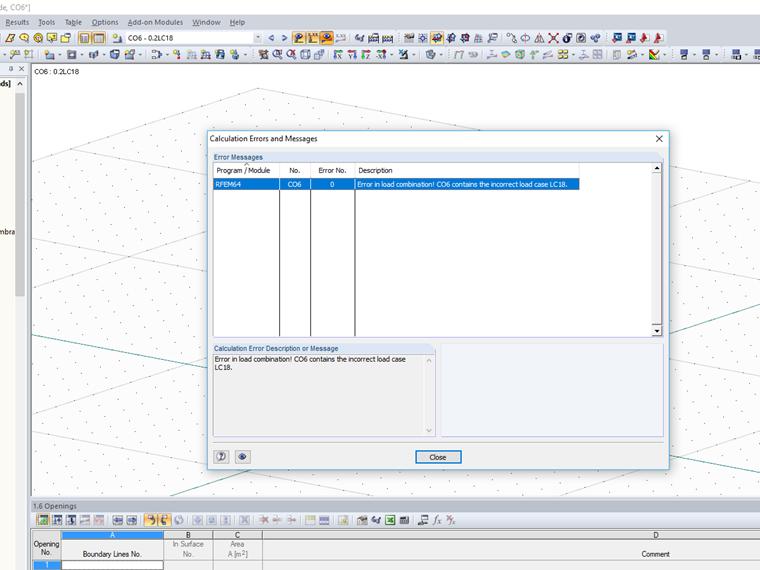

My RFEM file includes some RWIND Simulation load cases. After deleting the FE mesh, these load cases are no longer available. However, these load cases are still available in the automatically generated combinations and I get an error message when starting the calculation. What can I do?
