Answer:

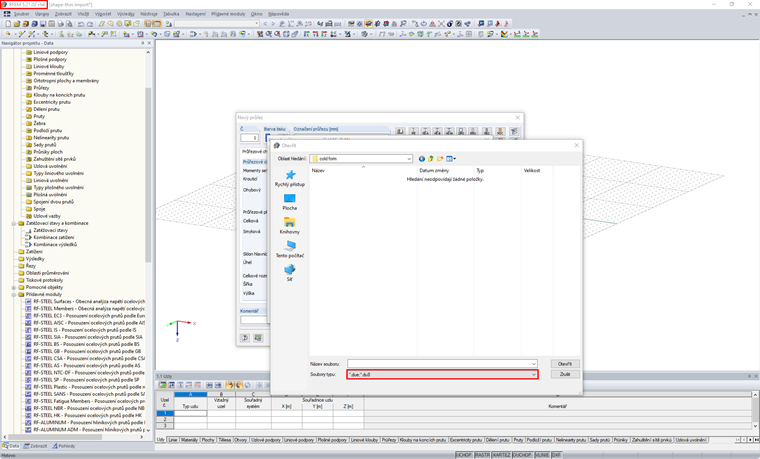

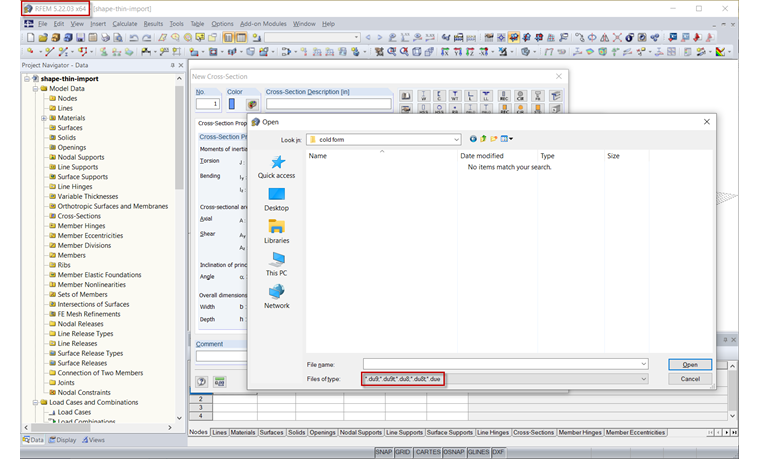

The problem is in the RFEM version. SHAPE‑THIN 9.01 was released together with RFEM version 5.22.01. The files created in SHAPE‑THIN 9 have the format *.du9. RFEM versions older than 5.22.01 do not recognize this extension, thus cross-sections created in a newer version cannot be loaded.
Question
I have a SHAPE‑THIN 9 license, but I cannot transfer the created cross-section into the RFEM program. What is the problem?
Author
Ing. Martinec takes care of customer service and student licenses in the Czech office.
