How can I graphically display the effective lengths of members?

Answer

The effective length of a member can be adjusted manually in the "Effective Lengths" tab of the "Edit Member" dialog box (see Figure 01).

Image 01 - Adjustment of Effective Length Factors

Then, you can graphically display the members in color according to the effective length:
Click the "Display" navigator → "Colors in Graphic According to" → "Effective Length Factor" (see Figure 02).

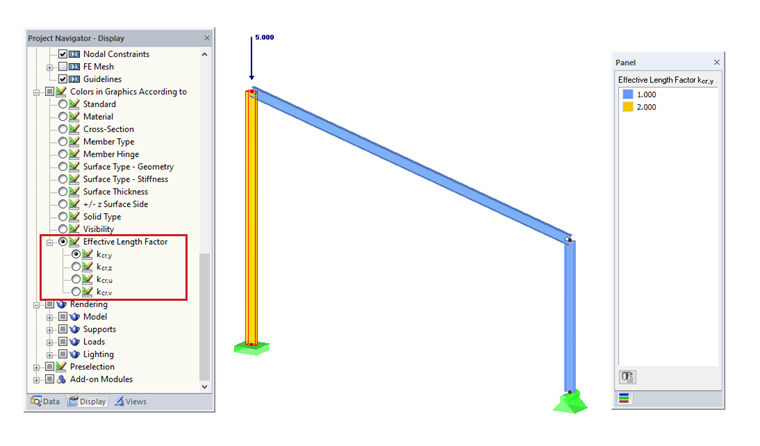

Image 02 - Colors in Graphic According to Effective Length Factor
