Displaying Results on Surfaces in RFEM 5

The values on surfaces can be displayed in the surface grid. Please note the following points:

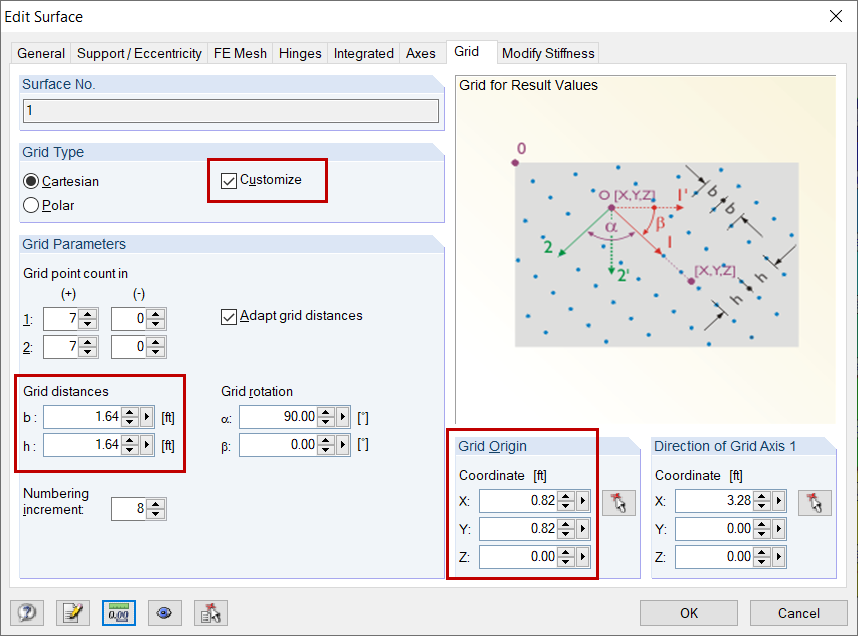

• Dialog box "Edit Surface", tab "Grid": Activate "User-defined" and check the distance and the grid origin.


  1 Settings - Surface Grid

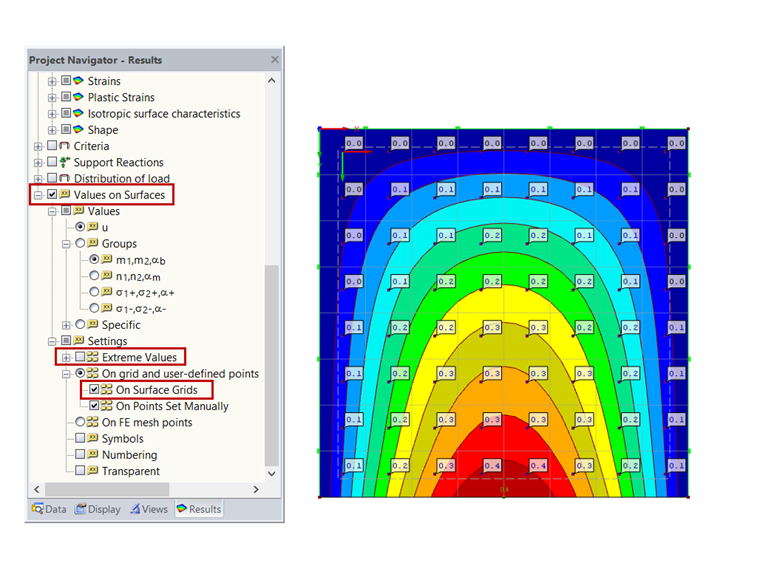

• Results navigator: Activate "Values on Surfaces", deactivate "Extreme Values", activate "In Surface Grid".


  2 Values on Surfaces in Result Navigator
