Error Message "Entry in the 'Beam spacing' box is not within the allowable range".

I get the error message "Entry in the 'Beam spacing' box is not within the allowable range". What can I do?


Answer:

You have probably defined a shear panel and a rotational restraint for your design case in the RF‑/STEEL EC3 add-on module, but have not yet defined all specifications for the rotational restraint.

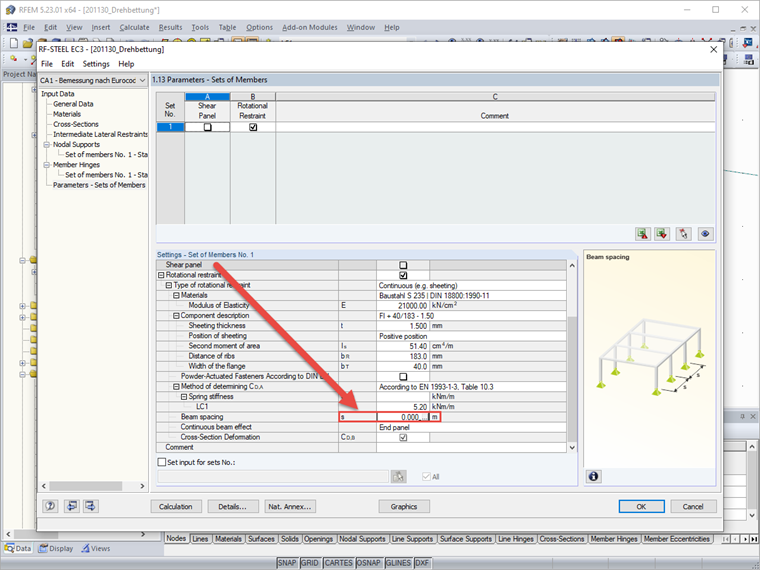

In Window 1.13, scroll down under Settings. For the rotational restraint, the "Beam spacing" is still defined as s = 0 m. Adjust the value accordingly.
