Since the RF‑/STEEL EC3 and RF‑/STEEL Warping Torsion add-on modules have their own equation solvers, the eccentricities of supports also play an important role in this case.

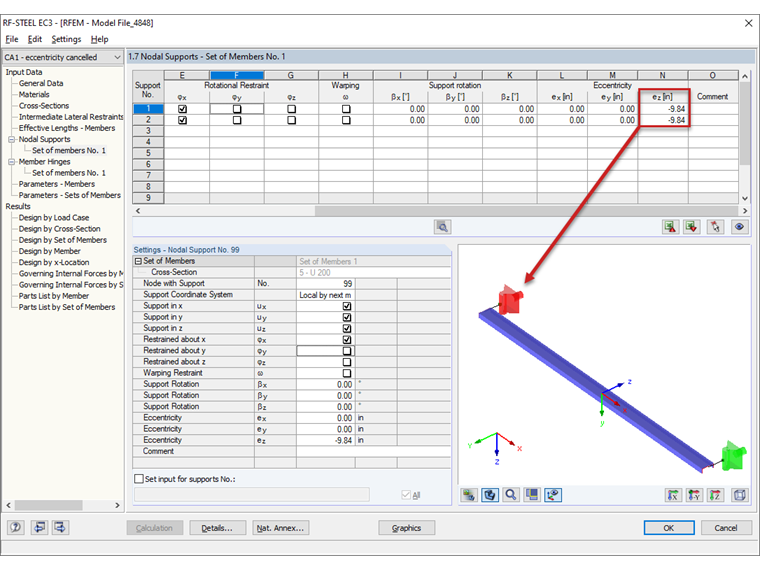

Therefore, we recommend adjusting the support eccentricities. You can do this in Window "1.7 Nodal Supports" of RF‑/STEEL EC3 (see Image 01).

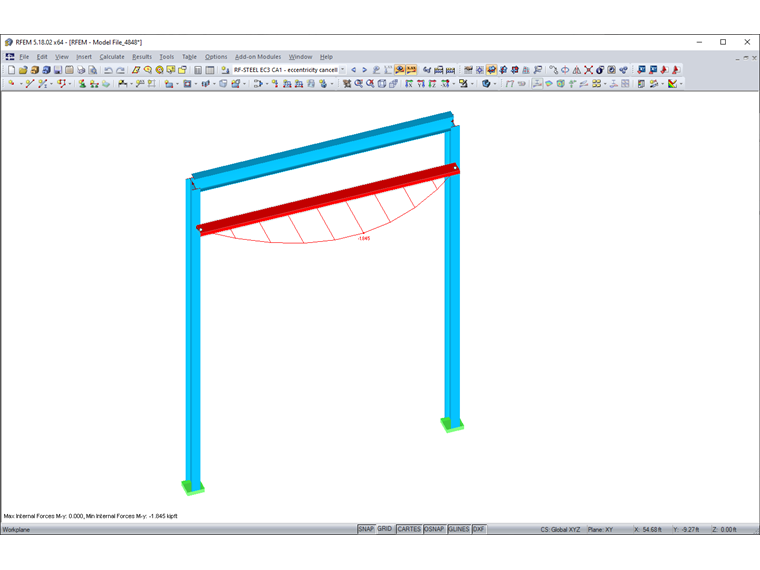

After this change, the span moment becomes maximum and the boundary moments zero (see Image 02).
Mr. Ackermann is the contact person for sales inquiries.
In the "Edit Section" dialog box, you can display the buckling shapes of the Finite Strip Method (FSM) as a 3D graphic.
The seismic design result is categorized into two sections: member requirements and connection requirements.
The "Seismic Requirements" include the Required Flexural Strength and the Required Shear Strength of the beam-to-column connection for moment frames. They are listed in the ‘Moment Frame Connection by Member’ tab. For braced frames, the Required Connection Tensile Strength and the Required Connection Compressive Strength of the brace are listed in the ‘Brace Connection by Member’ tab.
The program provides the performed design checks in tables. The design check details clearly display the formulas and references to the standard.
In the Concrete Design provides an option to perform seismic design according to AISC 341-16 for steel members.
Five SFRS types (Seismic Force-Resisting Systems) are available for this.
