• Free definition of two or three reinforcement layers in the ultimate limit state
• Vectorial representation of the main stress directions of internal forces allowing optimal orientation adjustment of the third reinforcement layer to the actions
• Design alternatives to avoid compression or shear reinforcement
• Design of surfaces as deep beams (theory of membranes)
• Option to define basic reinforcements for top and bottom reinforcement layers
• Definition of designed reinforcement for serviceability limit state design
• Result output in points of any selected grid
• Optional extension of the module with nonlinear deformation analysis. The calculation is performed in RF‑CONCRETE Deflect by reducing the stiffness according to the standard, or in RF‑CONCRETE NL by the general nonlinear calculation determining the stiffness reduction in an iterative process.
• Design with design moments at column edges
• Precise breakdown of reasons for failed design
• Design details of all design locations for better traceability of reinforcement determination
• Export of isolines for the longitudinal reinforcement in a DXF file for further use in CAD programs as a basis for reinforcement drawings

• Determination of longitudinal, shear, and torsional reinforcement
• Representation of minimum and compression reinforcement
• Determination of neutral axis depth, concrete and steel strains
• Design of member sections affected by bending about two axes
• Design of tapered members
• Determination of deformation in state II, for example according to EN 1992-1-1, 7.4.3
• Considering tension stiffening

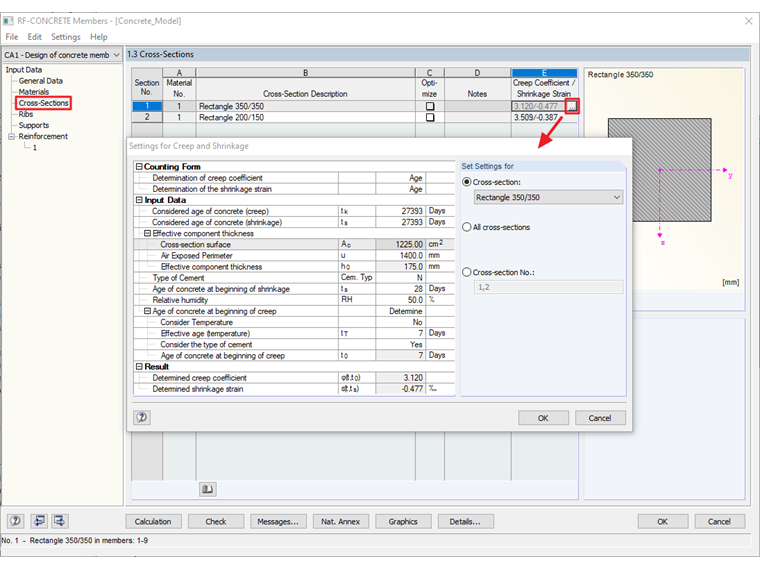

• Considering creep and shrinkage
• Precise breakdown of reasons for failed design
• Design details of all design locations for better traceability of reinforcement determination
• Options to optimize cross‑sections
• Visualization of concrete section with reinforcement in 3D rendering
• Output of complete steel schedule
• Fire resistance design according to the simplified method (zone method) according to EN 1992‑1‑2 for rectangular and circular cross‑sections
• Optional extension of the RF‑CONCRETE Members add‑on module with a nonlinear calculation of frameworks for the ultimate and serviceability limit states. The extension enables the design of potentially unstable structural components by means of a nonlinear calculation, or a nonlinear deformation analysis of 3D frameworks. Find more information under the product description of the RF-CONCRETE NL add‑on module.

After the calculation, the module shows clearly arranged tables listing the required reinforcement and the results of the serviceability limit state design. All intermediate values are included in a comprehensible manner.

The results of RF‑CONCRETE Members are displayed as result diagrams of each member. The reinforcement proposals of the longitudinal and the shear reinforcement, including sketches, are documented in accordance with current practice. It is possible to edit the reinforcement proposal and to adjust, for example, the number of members and the anchorage. The modifications will be updated automatically. A concrete cross‑section, including reinforcement, can be visualized in a 3D rendering. This way, the program provides an optimal documentation option to create reinforcement drawings, including steel schedule.

The results of RF-CONCRETE Surfaces can be displayed graphically as isolines, isosurfaces, or numeric values. It is possible to sort the longitudinal reinforcement display by required reinforcement, required additional reinforcement, provided basic or additional reinforcement, and provided total reinforcement. The isolines of the longitudinal reinforcement can be exported as a DXF file for further use in CAD programs as a basis for reinforcement drawings.
