Answer:

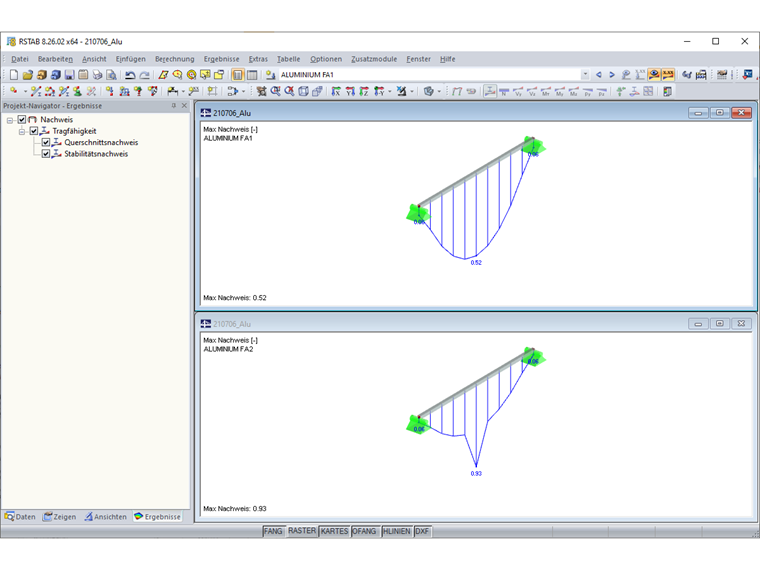

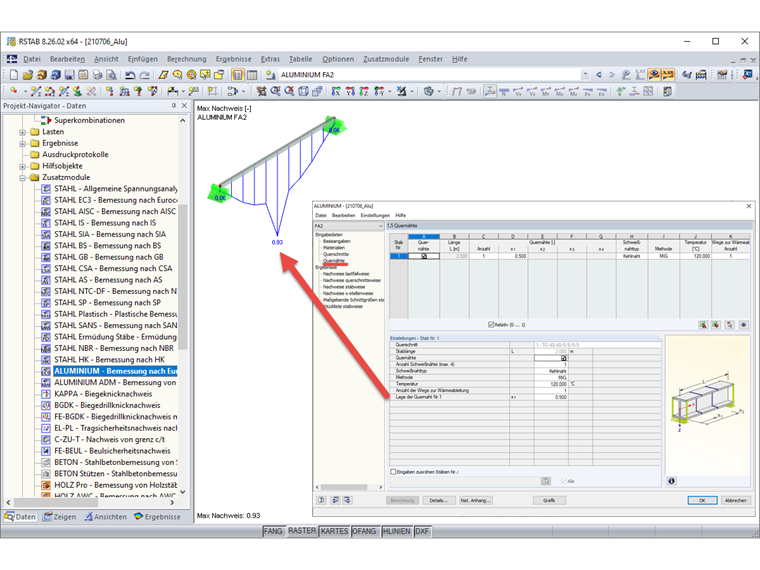

If there are member sections connected by welds, you can define the arrangement and design of the transverse welds in Window 1.5. This allows you to determine the cross-section softening in the heat affected zone.
According to EN 1999‑1‑1, Clause 6.1.6.2, NOTE 2, there are two options to consider the reduced strength:
In the case of the reduced stress method, the strength values f,o,haz and fu,haz are reduced in accordance with Table 3.2. On the other hand, the effective cross-section method uses the reduced cross-section properties for the design (area A, section moduli W, moments of inertia I).
