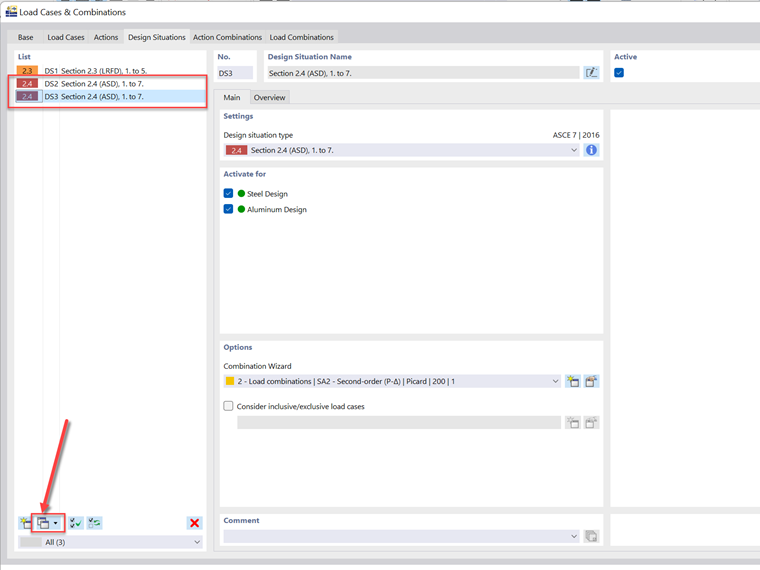

To run the design check according to ASD, you can create a copy of the existing ASD Design situation.

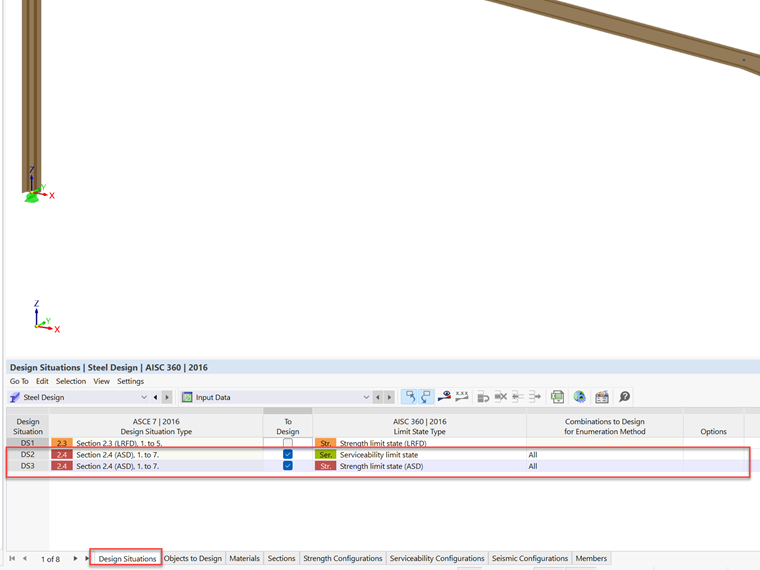

Under the selected Design Add-on - Design Situations tab, you can then set up the table to look like the following where the LRFD is disabled and the two ASD Design Situations are set to ASD limit state as well as Serviceability limit state.
Alex is responsible for customer training, technical support, and continued program development for the North American market.
