AISC 360-16 Shear Plane in Thread Option

Back to FAQ

FAQ 005374 | Can I exclude bolt threads from the shear planes according to AISC 360-16 in the Ste...

FAQ Explanatory Video

01
Shear Plane in Thread

Back to FAQ

18 April 2023

005374

Cisca Tjoa

Calculation

RFEM 6

Steel Joints for RFEM 6

Steel Joints | RSTAB 9.xx

Finite Element Analysis

Steel Connections

ANSI/AISC 360

Can I exclude bolt threads from the shear planes according to AISC 360-16 in the Steel Joints Add-on?

Answer

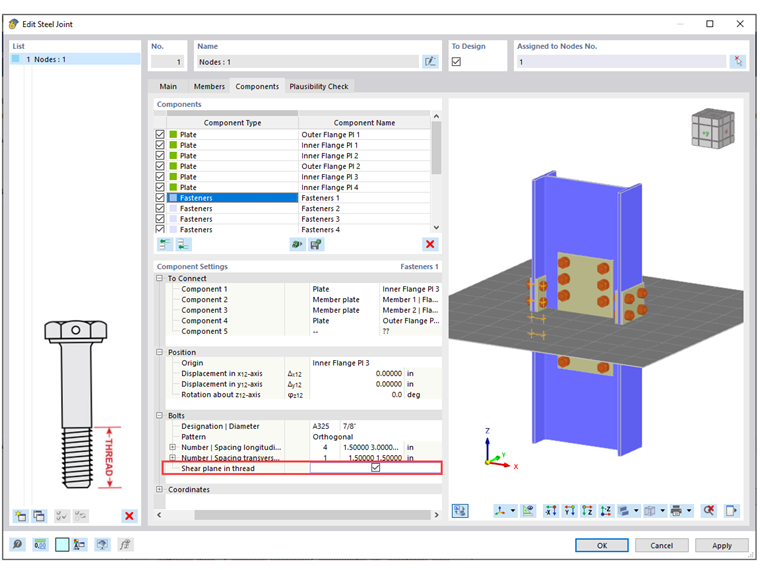

By default, the Shear plane in thread option is activated and the lower strength according to the selected design standard is considered for the bolt shear check.

In AISC, the bolt nominal shear strengths are listed in Table J3.2. As an example, Group A (for example, A325) bolt has a nominal shear strength of 54 ksi (372 MPa) when the threads are not excluded from the shear planes. To use the higher strength of 68 ksi (469 MPa), the option can be unchecked to exclude threads from the shear planes.

- Shear Plane in Thread

Keywords

Bolt Shear Plane Thread Steel Joint Connection AISC 360
