Design Cases

Can I use design cases in RFEM 6 in the same way as in RFEM 5?


Answer:
Info

Update: Using the option to define objects to be excluded for selected combinations, objects in a model can now also be designed with different specifications.

The design concept of RFEM 6 has been fundamentally changed, so the design cases are no longer available in the add-ons. When defining members and surfaces, you can specify whether to perform design and assign the design properties to the objects. Therefore, it is not possible to perform alternative analyses in the same model.

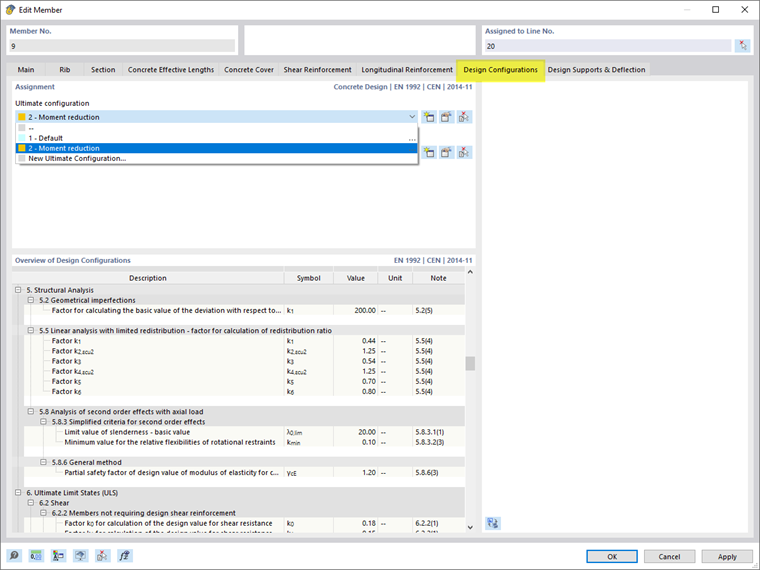

If you want to design some members according to different specifications, define a new design configuration for a limit state, and assign this configuration accordingly.

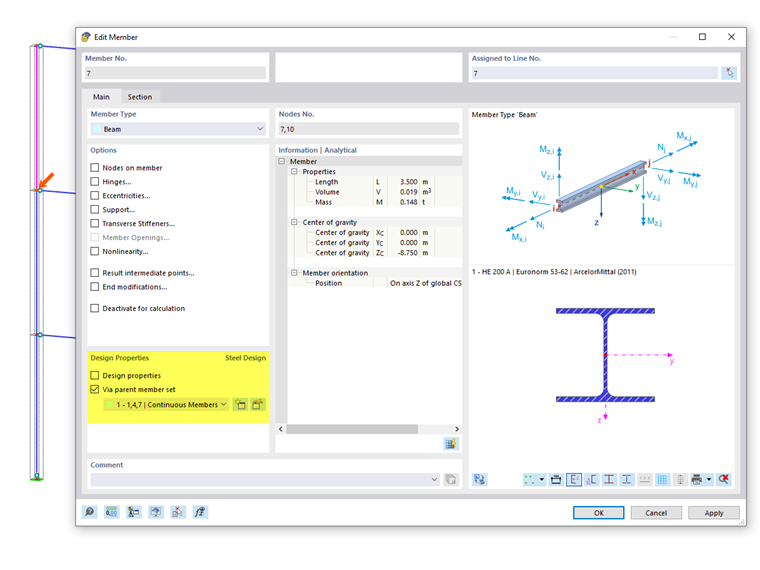

If you design both members and member sets, you can use the object properties to control whether to consider each member individually or to analyze the member set as a superordinate object.

Furthermore, RFEM 6 and RSTAB 9 provide you with the option to design objects with common properties using representatives.

Tip

With the Construction Stages Analysis (CSA) add-on, you can analyze these influences and consider them up to the point of the structural design.


Author

Mr. Vogl creates and maintains the technical documentation.
