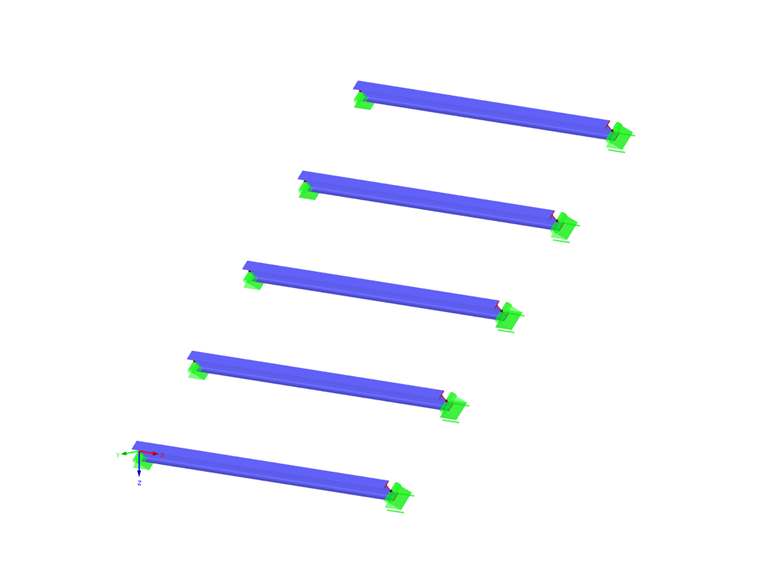

This function can be found in the "Edit Nodal Support" dialog box and must be specified individually for each axis. Thus, the nodal supports can be quickly and automatically adjusted to any changes depending on the inclination of the members.

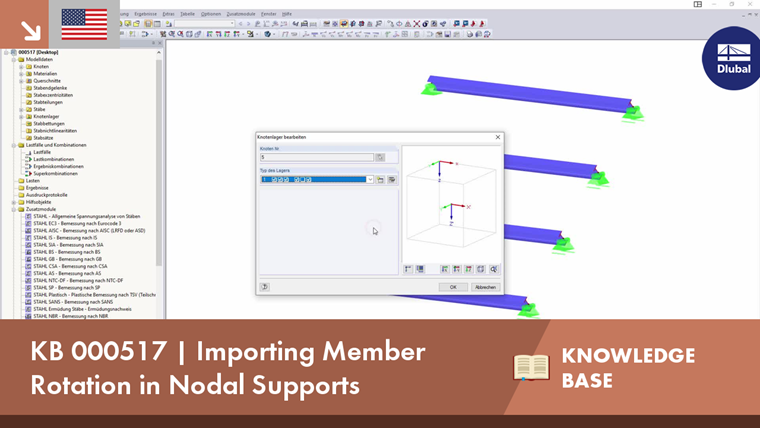

Importing Member Rotation in Nodal Supports

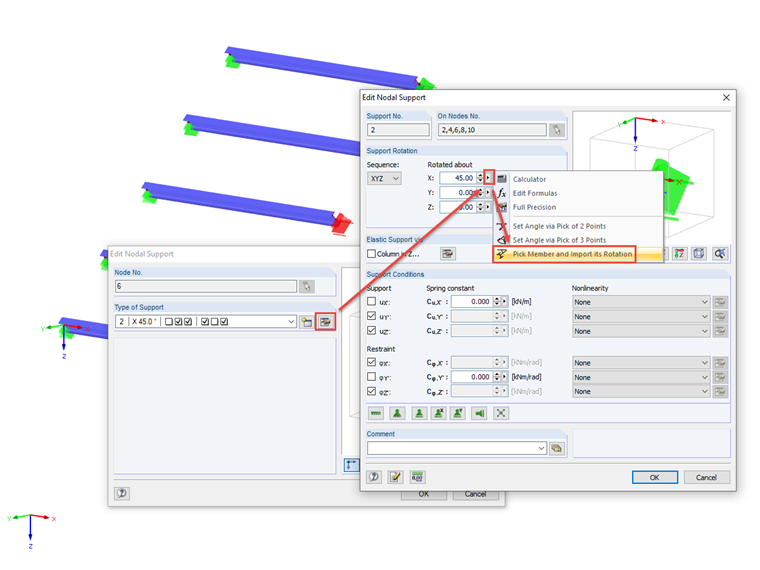

If you want to orient a nodal support to the member axes of the connecting member, the easiest way to do this is to use the "Pick Member and Import its Rotation" function.
