Designing with averaged internal forces can be useful for concrete floor slabs over columns, to reduce the stress peaks occurring there.
Using Averaged Internal Forces for Design

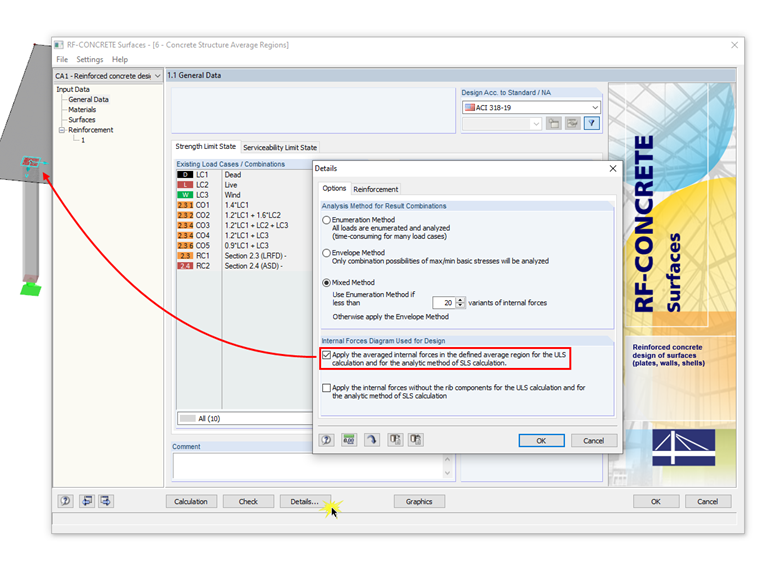

The averaged internal forces from the previously defined average regions can also be used for designing concrete surfaces. To do this, click [Details] in RF‑CONCRETE Surfaces, then select the corresponding check box. This function is accessible only if you previously defined an average region.
